The FAKRO LWF 60, a new generation of fire resistant ladder which combines a high level of fire protection with comfortable and safe access to the loft. The LWF fire resistance class EI1 / EI2 = 60 min (according to EN 13501-2).
Features
- stile ends
- fire- resistant hatch

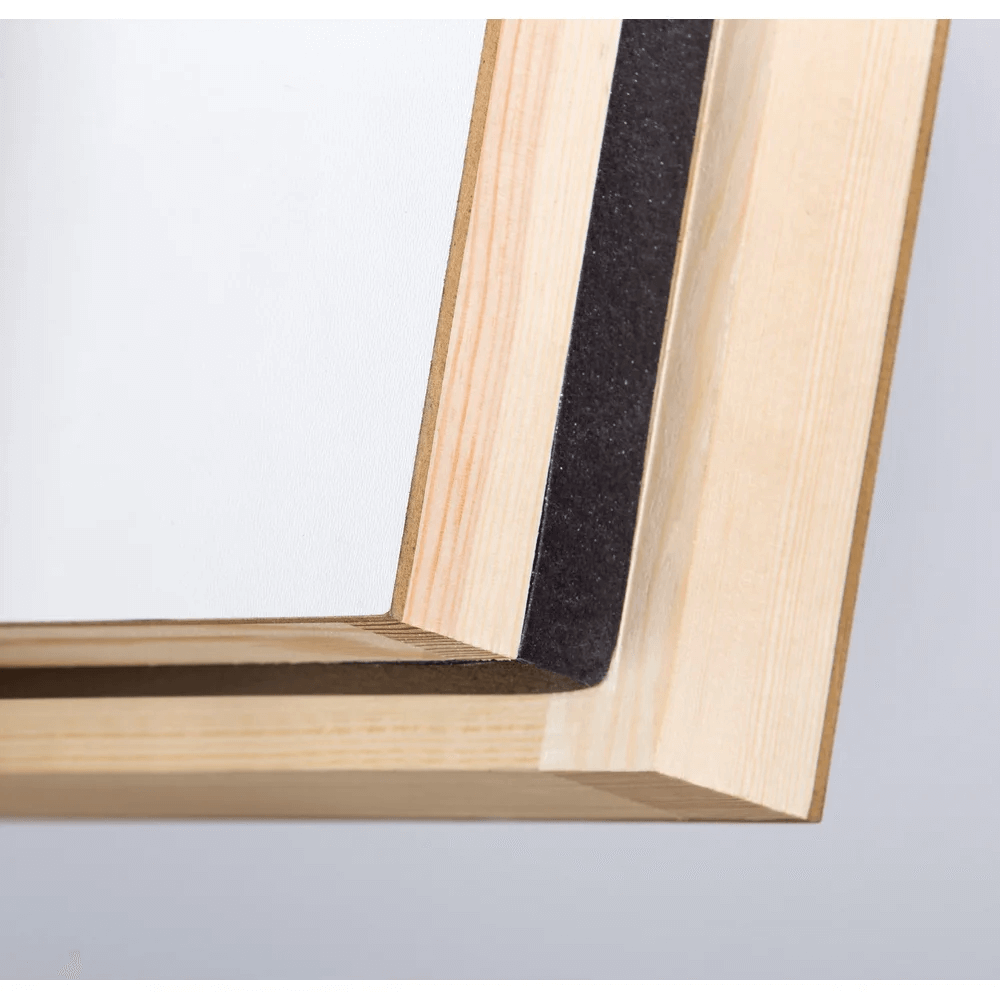

- peripheral seal
- handrail
- non-slip treads set flush with ladder strings
- fully assembled and ready for quick installation in the ceiling
- possibility of installing additional accessories
- 3 yeahr warranty
Technical specification
- Satisfy the requirements of EN 14975
- Maximum loading: 160 kg
- Loft ladder U-Value: U=0.6 W/m²K (manufacturer’s internal calculations)
- Insulation thickness: 7.4 cm
- Hatch thickness 8 cm
Technical data

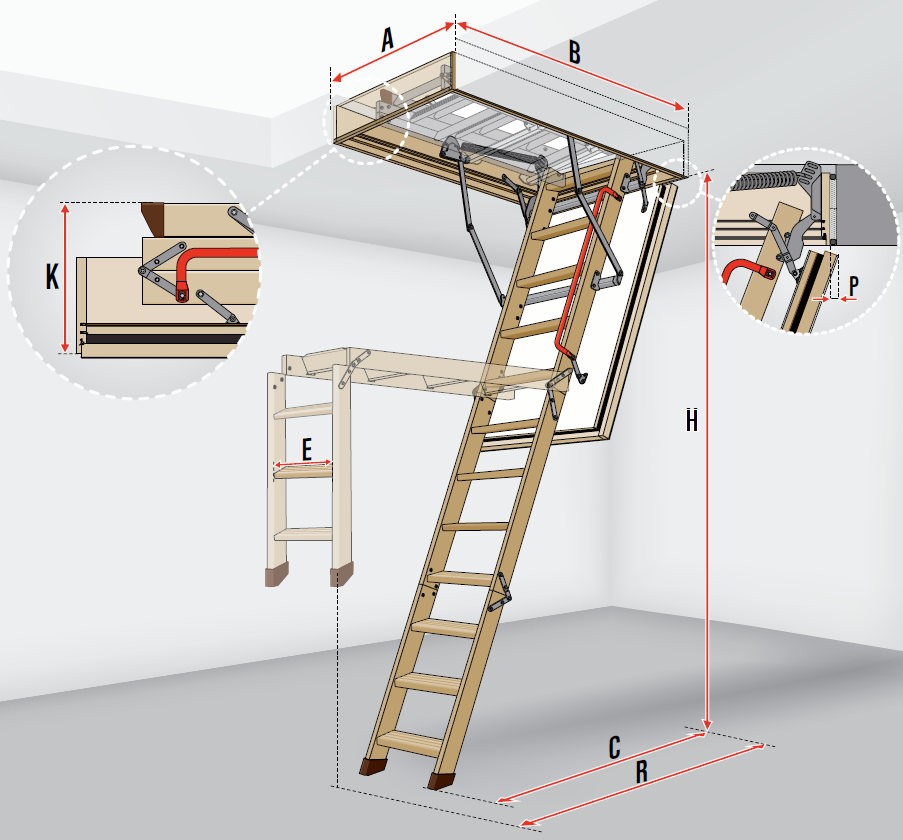

| Ceiling opening dimension / room height[cm] | AxB hH | 60x120 h=280 | 70x120 h=280 | 70x130 h=280 | 70x140 h=280 | 86x130 h=280 | 60x130 h=305 | 70x130 h=305 | 70x140 h=305 | 86x130 h=305 |
| Box external dimension [cm] | WxL | 58x118 | 68x118 | 68x128 | 68x138 | 84x128 | 58x128 | 68x128 | 68x138 | 84x128 |
| Box height [cm] | 22 | |||||||||
| Folded ladder height [cm] | K | 37 | ||||||||
| Swing space [cm] | R | 164 | 178 | |||||||
| Distance after ladder unfolding [cm] | C | 129 | 139 | |||||||
| Tread length [cm] | E | 34 | ||||||||
| Tread width [cm] | S | 8 | ||||||||
| Tread thickness [cm] | Z | 2 | ||||||||
| Distance between each tread [cm] | G | 25 | ||||||||
Installation how-to-video
U-value:
0.6 W/(m²K)
