Flashing VELUX EKW | 2 windows side by side | For profiled roofing material up to 120mm

Flashing VELUX EKW | 2 windows side by side | For profiled roofing material up to 120mm

Write a review
€251,54 inc. VAT, excl. shipping
(€211,38 excl. VAT and shipping)
Insulates around the roof window frame, reducing heat loss and eliminating cold bridges.
ODV-EKW-CK02-1021M

Ships within 6-10 business days after receipt of your payment
+ −
Add to wish list

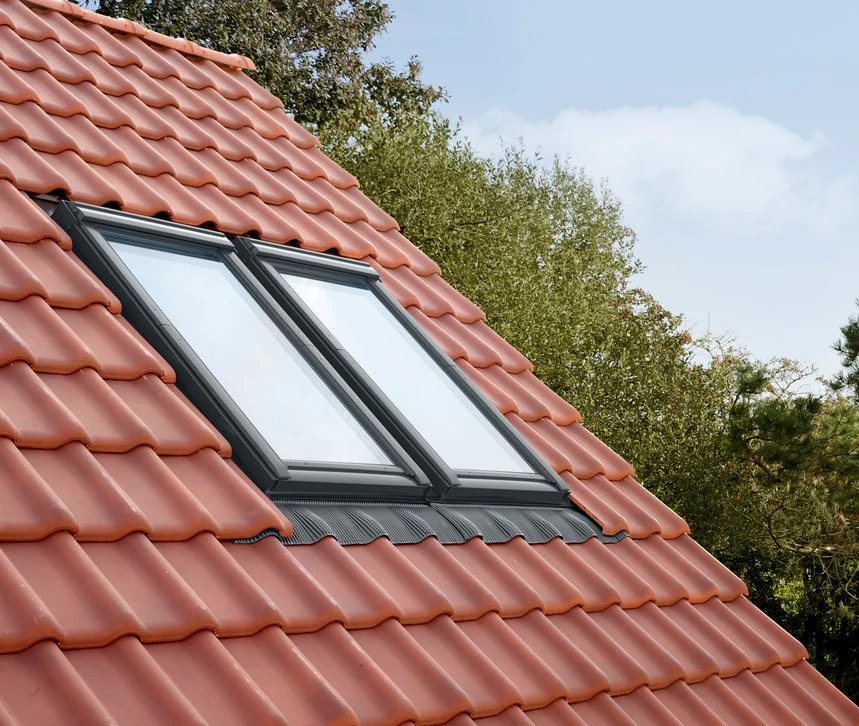

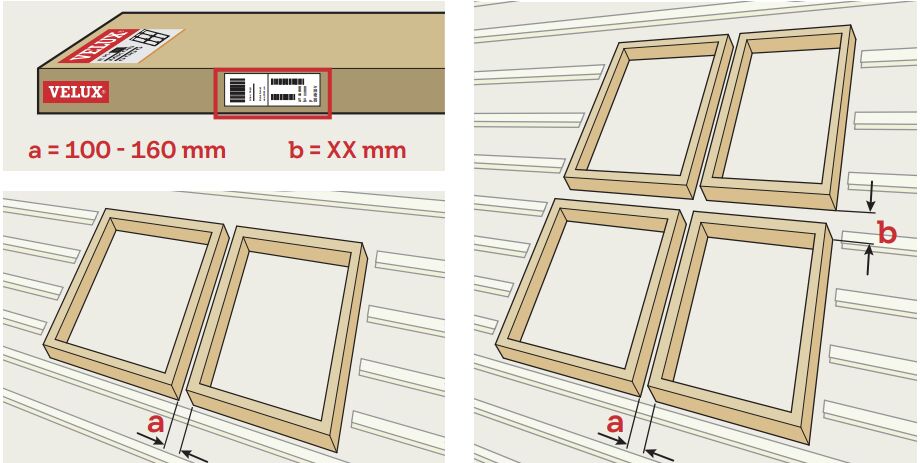

VELUX EKW --21 for installing two windows side by side with a distance between frames of a=10cm-16cm.

VELUX flashings fit all types of roofing materials and provide tight and simple incorporating windows in the roof slope. The design of flashings provides a safe drainage of rainwater and snow outside the window, while maintaining the instruction set mounting distance between the window and roofing.

Flashing and windows' profile are made as standard of requiring no maintenance aluminum sheet in Grey (RAL 7043).

Features

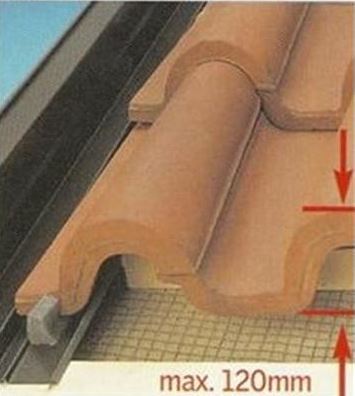

  • For standard installation of roof windows in profiled roofing material up to 120mm in profile
  • Also for interlocking slate, thatch and profiled sheeting
  • Suitable for 15°-90° roof pitches
Manufacturer details:

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K		 1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers		 1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Inert gas
filled panes		 Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane		 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Laminated opaque
inner pane		 X X X ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont		 X X ✓ ✓ X ✓ ✓ X ✓ ✓ X X ✓
Easy-to-clean
coating		 X X ✓ X X ✓ X X ✓ X X ✓ X
Anti-dew effect X X X X X ✓ ✓ X ✓ X X ✓ X
Sound insulation
Rw (dB)		 31 32 35 35 35 37 42 44 38 35 35 37 35
