Laminated inter glass Natural air inlet PVC White

VELUX GXU 0070 | Everfinish roof access window with 2-glazin for living quarters

✔ PVC ✔ Wood | white painted ✔ tilt and/or tilt and turn ✔ 2-panes ✔ Window U-value: 1.3 W/m²K ✔ Glazing U-value: 1.0 W/m²K
Alter Preis: 904,02 ( 759,68 excl. VAT and shipping)
723,22 inc. VAT, excl. shipping
(607,75 excl. VAT and shipping) You save: 151,94 (20%)
GXU-CK06-0070 ZWC

Ships within 10-12 business days after receipt of your payment

+
Add to wish list

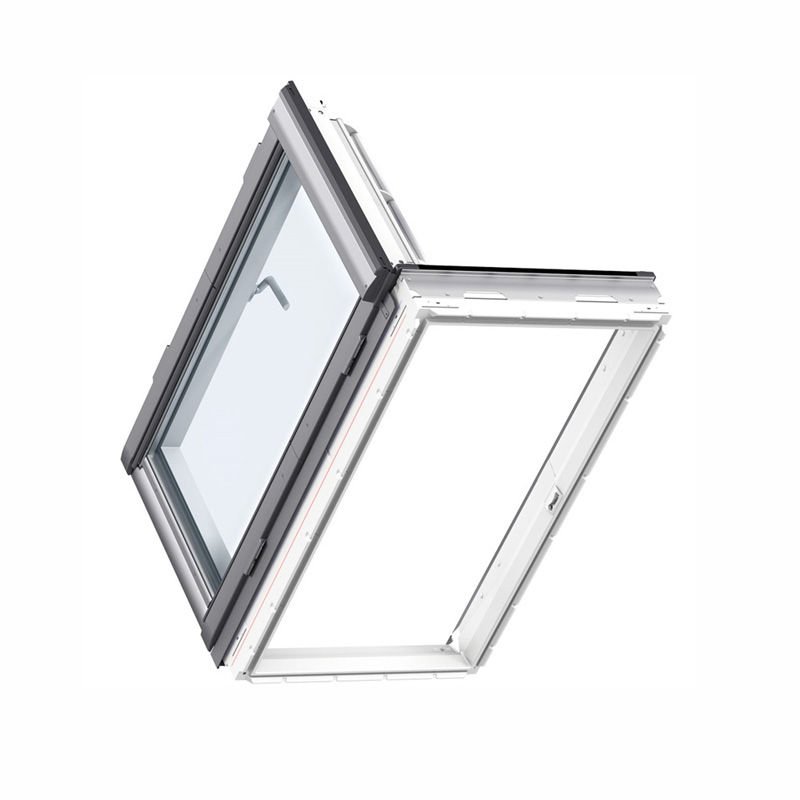

Roof access window VELUX GXU 0070

VELUX roof access window for living rooms

VELUX Roof Access Windows embrace the best of the outdoors, turning unused attics, above-garages and bonus rooms into inspired spaces.

  • White Polyurethane Finish with ThermoTechnology
  • Double glazed unit with laminated safety glazing
  • Exit function, size of the opening:
    • CK06 approx. 43x110cm
    • FK06 approx. 53x110cm
  • Open/close by a handle mounted on the side of the sash
  • Integrated ventilation flap with air filter (dust and insect filters)
  • Wide range of accessories for indoor use
  • Approved roof pitch range: 20° –90° (depending on the choice of flashing frame)
  • External covers: aluminum (RAL 7043)

Safery glazing VELUX --70

Double glazed unit with laminated safety glazing as standard and including new rain noise reduction.

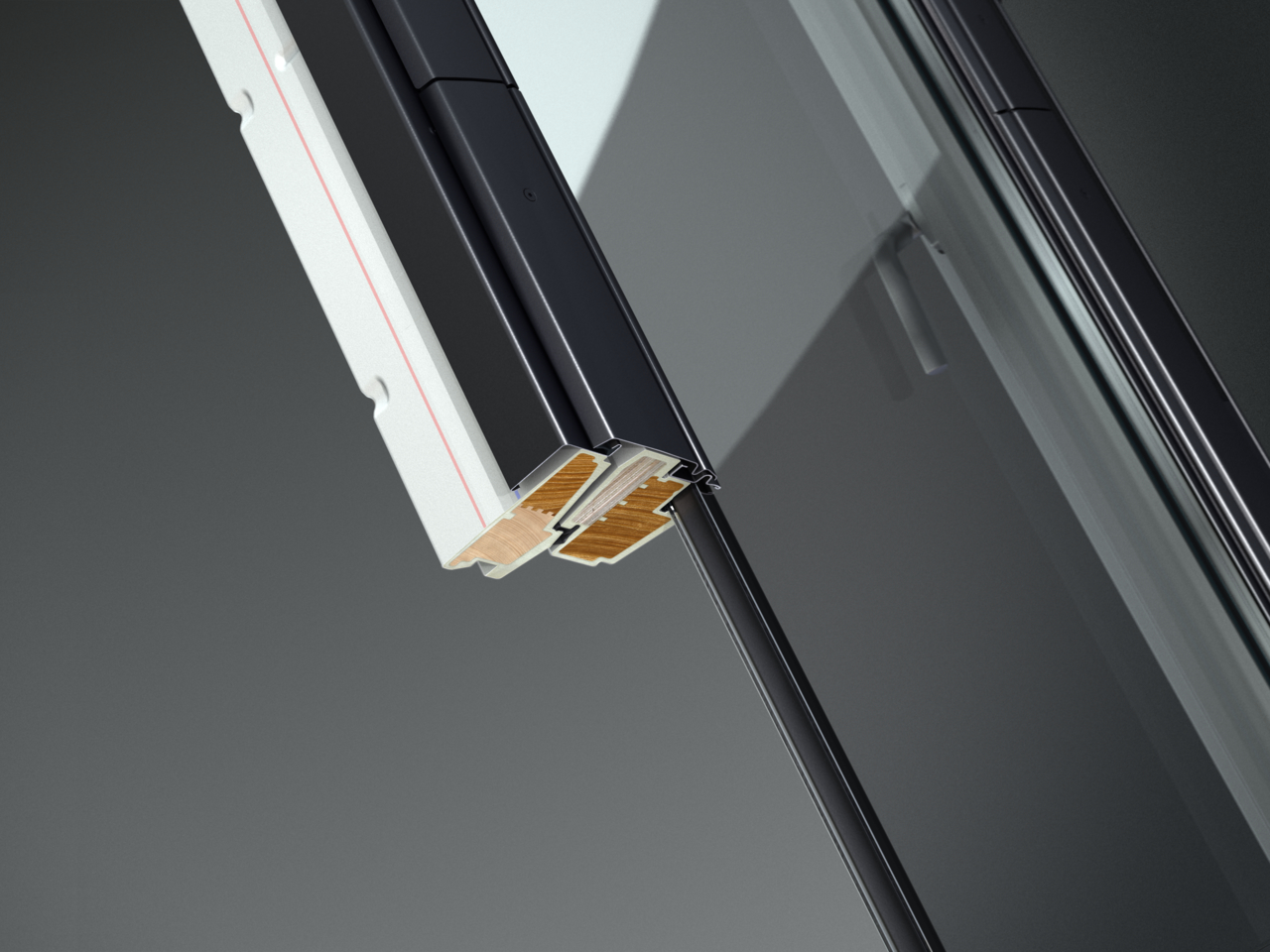

White Polyurethane Finish

  • Wooden core encased in moisture-resistant white polyurethane. The first choice for humid rooms such as kitchens and bathrooms,
  • No visible joints, so dirt can’t accumulate in the corners,
  • Maintenance-free, which is ideal for out-of-reach areas,
  • Thermally moulded timber core delivers improved insulation.

ThermoTechnology™

Experience a more comfortable home and lower energy bills with VELUX ThermoTechnology. Innovative use of high performance materials in the window construction provides excellent energy efficiency, insulation and an airtight seal. Look for the ThermoTechnology™ seal for your guarantee of excellent energy efficiency.

Natural ventilation

Let fresh air into your home even when you are away or sleeping, without having to worry about security or bad weather. Pull the unique top control bar once and you will allow fresh, filtered air to enter through the ventilation flap.

Flashings

VELUX flashing: do I really need it?

Flashings are essential for the correct installation of roof windows. Precisely designed flashing details ensure a durable and neat fit with the roofing material used. The purpose of flashing is to ensure good drainage away from the window and to provide protection from the elements.
VELUX offers a range of flashings designed for different roofing materials and provide two options for installation height (standard and recessed).

VELUX offers a range of flashings designed for different roofing materials and provide two options for installation height of the roof window

VELUX flashing: standard or recessed installation?

Recessed installations offer a more sleek, streamlined appearance, sitting 40mm deeper in the roof structure. Recessed installations also offer greater energy efficiency, and when installed with the appropriate VELUX insulation collar actually offer a lower certified u-value, saving energy and providing architects with greater design flexibility.

Types of VELUX flashings
EDZ 0000 EDW 0000 EDT 0000 EDJ 0000 EDN 0000 EDL 0000 EDS 0000 EDB 0000
Purpose (type of roofing material):
profiled up to 45mm in profile profiled up to 120mm in profile flat & thick from 15mm up to 40mm thick profiled up to 90mm in profile slate up to 8mm thicke slate up to 8mm thick bituminous felts slate up to 19mm thick
Installation type and installation range:
Standard,
suitable for 15°-90° roof pitches
Standard,
suitable for 15°-90° roof pitches
Standard,
suitable for 20°-90° roof pitches
Recessed,
suitable for 20°-90° roof pitches
Recessed,
suitable for 20°-90° roof pitches
Standard,
suitable for 15°-90° roof pitches
Standard,
suitable for 15°-90° roof pitches
Standard,
suitable for 25°-90° roof pitches
Additional insulation products (sold separately):
Insulation frame VELUX BDX 2000 for standard flashings,
and vapour barrier collar VELUX BBX
Insulation frame VELUX BDX 2000F for recessed flashings,
and vapour barrier collar VELUX BBX
Insulation frame VELUX BDX 2000 for standard flashings,
and vapour barrier collar VELUX BBX

Technical values

Roof access windows VELUX GX_ are available in several variants. VELUX offers a choice of both interior finishes and glazing. The guide below will help you find the roof window that best suits your needs.

GXL 3070 GXL 3066 GXL 2070 GXL 2066 GXU 0070 GXU 0066
Internal finish
Lacqyered natural pine
VELUX Lacqyered natural pine
Pine covered with white lacquer
VELUX Pine covered with white lacquer
White polyurethane
VELUX White polyurethane
Glazing units
VELUX symbol and name
Double glazed
(--70)
"Safety"
Triple glazed
(--66)
"Energy efficiency"
Double glazed
(--70)
"Safety"
Triple glazed
(--66)
"Energy efficiency"
Double glazed
(--70)
"Safety"
Triple glazed
(--66)
"Energy efficiency"
Heat insulation Uw
The smaller the U-value, the better the insulation
1.3W/m2K 1.0W/m2K 1.3W/m2K 1.0W/m2K 1.3W/m2K 1.0W/m2K
Sound insulation Rw
The higher the R-value, the better the sound insulation
35 dB 37 dB 35 dB 37 dB 35 dB 37 dB
Heat protection g
The smaller the g-value, the better the heat protection
0,46 0,44 0,46 0,44 0,46 0,44
Solar heat gain g
The higher the g-value, the higher the solar heat gain
0,46 0,44 0,46 0,44 0,46 0,44
Toughened outer pane
Laminated inner pane
Suitable for passive houses
- - -
Easy to Clean coating
- - -
Anti Dew Coating
- - -

Roof windows

Category:
Premium
Material:
  • PVC
  • Wood | white painted
Opening:
  • tilt and/or tilt and turn
Glazing:
2-panes
Window U-value:
1.3 W/m²K
Glazing U-value:
1.0 W/m²K
Control:
Manuall
