PVC Triple glazed White

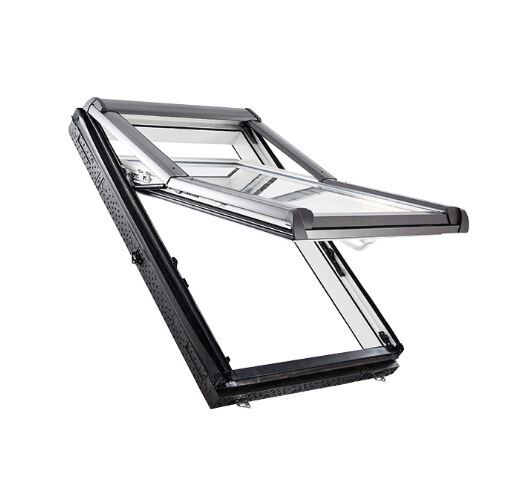

Roof window ROTO DESIGNO R79 K

✔ PVC ✔ high-pivot ✔ 3-panes ✔ Window U-value: 1.1 W/m²K ✔ Glazing U-value: 0.7 W/m²K
Alter Preis: 535,78 ( 450,24 excl. VAT and shipping)
428,63 inc. VAT, excl. shipping
(360,19 excl. VAT and shipping) You save: 90,05 (20%)
Please read the description to understand the dimensions used by Roto
ODR-R79K-0507

Ships within 5-7 business days after receipt of your payment

+

Additional products

Flashing for ROTO roof windows Flashing for ROTO roof windows
Please read the description to choose the right flashing.
Size of flashing must be the same like roof window.
94,35 inc. VAT, excl. shipping (79,29 excl. VAT and shipping)
+

Ships within 5-7 business days after receipt of your payment

  • Total cost 522,98

Add to wish list

The Designo R79 plastic tilt window differs from traditional tilt windows in that the rotation axis is moved upwards, which ensures greater functionality and greater comfort of use, among others by moving the rotation axis up. thanks to more headroom. Narrow frame profiles allow ideal illumination of the loft. The security of Designo R79 windows is enhanced by actuators that prevent the window from slamming shut on its own and at the same time ensure that the sash opens smoothly. When the window is fully rotated, the sash automatically locks into a cleaning position, making it easy to clean the outer pane as well. All functions are operated using a single handle on the underside of the window, which makes this model practical. The window is characterised by the modern design of the external cladding in a unique anthracite metallic colour. With a pre-assembled thermal insulation block and foil connection, the Roto Designo R79 guarantees tight installation and energy efficiency.

ROTO roof window with three elements of thermal insulation

  1. Triple glazing

  2. Thermal insulation block (WD) pre-assembled

  3. Foil connection pre-assembled to ensure airtightness



The benefits at a glance:

  • Energy-saving 3-disc package
  • Easy access to the open window in the upright position thanks to the high pivot point at 3/4 of the sash height
  • Convenient cleaning position, sash can be locked at an angle of 120°
  • Window with Thermoblock WD for insulating the window frame
  • 15-year guarantee and the highest product quality ensure years of trouble-free use
  • Window regulation system
  • 3 locking points of the window - tightness and increased protection against burglary

DESIGNO R79 high pivot window from ROTO Roof Window

The tried-and-tested high pivot technology of the ROTO DESIGNO R79H WD ensures a significant increase in freedom of movement and comfort compared to many other conventional pivot windows. The narrow frame also allows a particularly large amount of light into the interior.

The window sash swings in the upper third. Convenient operation of all functions with one-handed handle at the bottom.

  • Large opening thanks to the pivot point in the upper third
  • Pleasant view from the window possible
  • High freedom of movement when the window is open



ROTO roof window with Triple Glazing

ROTO DESIGNO R79 roof windows are equipped with triple glazing called Comfort Standard. This energy-efficient glazing is characterised by:

  • Thermal insulation value of the pane: Ug = 0,7 W/m2K
  • Total energy transmissibility (according to DIN EN410): 47%
  • Sound insulation: Class II
  • Outer pane: 4mm ESG
  • Centre disc: 3mm
  • Inner pane: 4mm
  • Space between panes: 2x 7 mm, noble gas filling (Krypton)
  • Total thickness of the disc: 25 mm

Sizes of ROTO DESIGNO roof windows

Sizes Frame
external dimensions
Insulation block
external dimensions
Disc
Area
Width x Height cm m2
5/7 54 x 78 60 x 84 0,24
5/9 54 x 98 60 x 104 0,31
6/9 65 x 98 71 x 104 0,40
6/11 65 x 118 71 x 124 0,50
6/14 65 x 140 71 x 146 0,61
7/9 74 x 98 80 x 104 0,48
7/11 74 x 118 80 x 124 0,59
7/14 74 x 140 80 x 146 0,72
7/16 74 x 160 80 x 166 0,84
9/11 94 x 118 100 x 124 0,80
9/14 94 x 140 100 x 146 0,97
11/11 114 x 118 120 x 124 1,00
11/14 114 x 140 120 x 146 1,22

ROTO DESIGNO flashing

The flashing is a clever plug-in system that doesn't require any external screw connections - and can therefore be installed just as quickly and safely by a Roto partner. Optimally adapted to the anthracite metallic paint of Roto Designo as standard.

  • Tiles (EDZ): for profiled roofing up to 50 mm
  • High tiles (EDH): for profiled roofing up to 90 mm
  • Flat tiles (EDT): for flat roofing materials over 3 cm thick
  • Tile with metal sheet (EDF): for roofing material: for sheet metal roofing, metal sheet, trapezoidal sheet
  • Flat (EDS): for flat roofing materials up to 35 mm, for slate and slate-like roofing materials
  • Slate and plain tile (EDL): for simple flashing materials up to 38 mm thick (2 x 19mm)
  • Bitumen (EDG): for flat flashing materials up to 16 mm thick (2x8mm)
  • Panels (EDQ): for sheet metal panels with standing seam

Roof windows

Material:
  • PVC
Opening:
  • high-pivot
Glazing:
3-panes
Window U-value:
1.1 W/m²K
Glazing U-value:
0.7 W/m²K
Control:
Manuall
