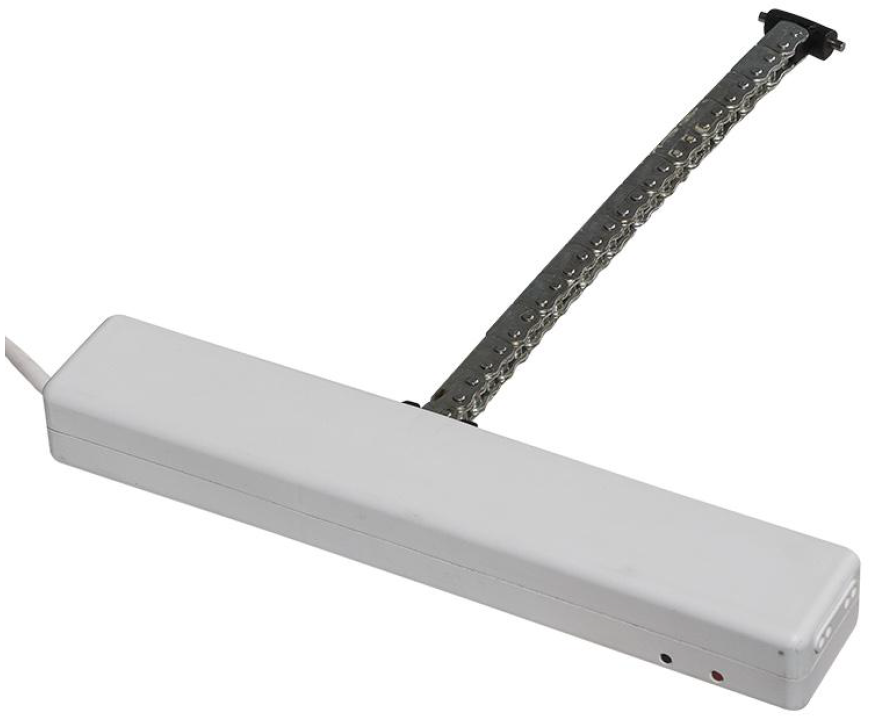

The ZWS12 and ZW230 chain motors thanks to their small dimensions and suitable force output are ideal for roof window operating, being fully compatible with the Z-Wave system. The motors can be applied in both the centre pivot and top hung and pivot roof windows as well as windows of non-standard dimensions. The maximum chain reach is 24cm for ZWS12 and 36cm for ZW230. The motors are equipped with built-in overload protection which acts as a sensor of correct window closing.
| Technical parameters: | |
| Chain reach | 360 mm |
| Supply voltage | 230 Vac |
| Rated current | 0.12 A |
| Power output | 15 W |
| Chain pushing force | 200 N |
| Chain stroke rate | 9.7 mm/s |
| Working temperature | -9° C bis +50° C |
| Power cable | 3 x 0.75 mm2 (1.5 mb) |
| Dimensions | 362 x 47 x 33.5 mm |
Manufacturer details:
- Fakro Sp. z o.o. | Węgierska 144A | Nowy Sącz 33-300 | Poland | [email protected]
