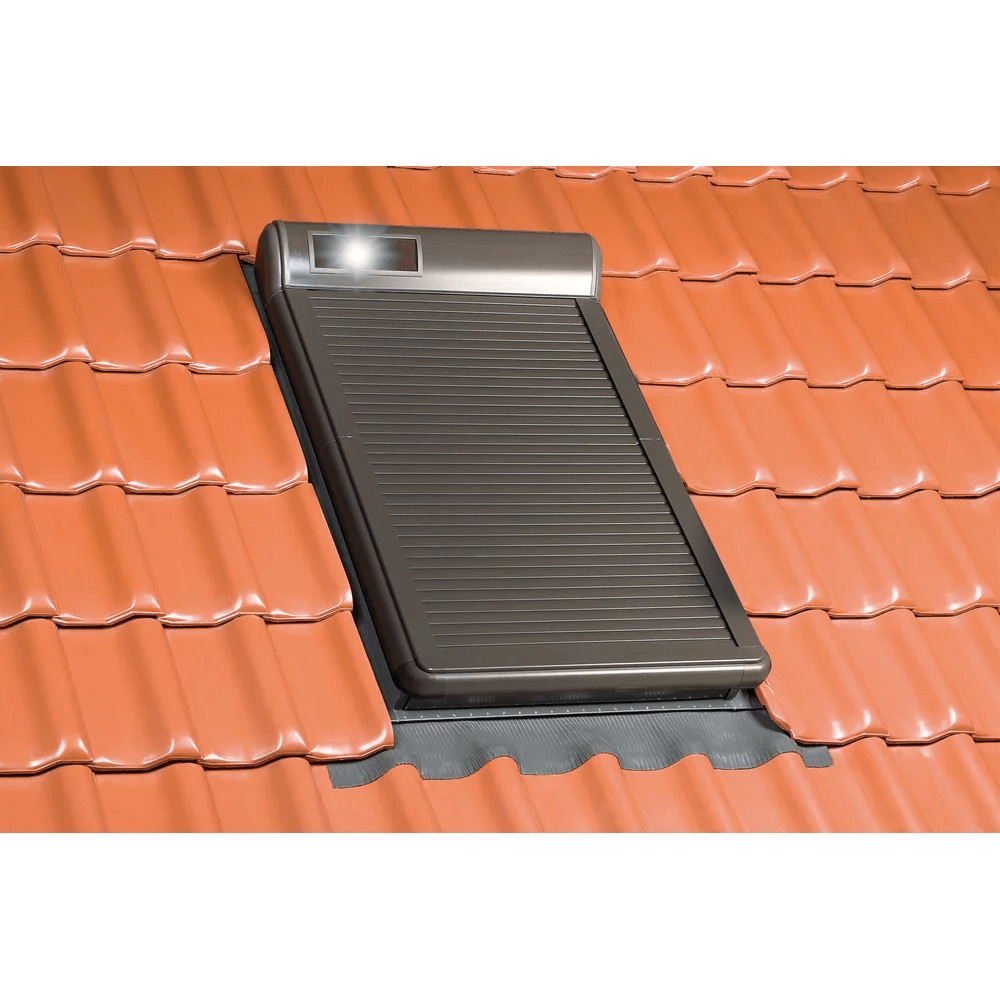

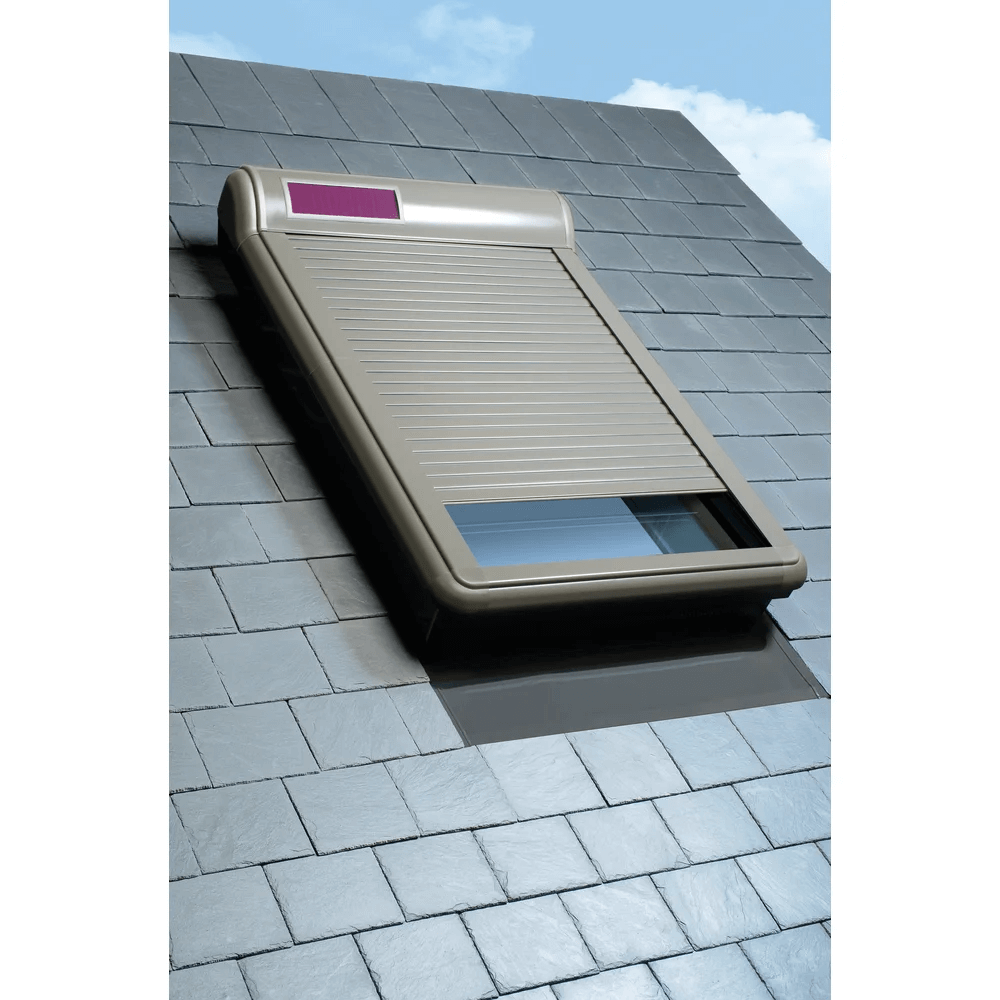

ARZ: roller shutters for Fakro roof windows
External roller shutter ARZ Solar provides total comfort when using the attic space because it protects from overheating, enables complete shading of the room, reduces noise from the outside and ensures privacy by completely covering the window.
Installed on the outside, FAKRO ARZ improve protection on sunny days from uncomfortable heat gain. The inside surface of the aluminium slats is covered with a special coating, which limits incoming heat.
- Roller shutter ARZ Solar is designed for for centre-pivot windows (FTS, FTP, FTU, FTT and PTP) and top-hung-and-pivot windows (FPT, FPU and PPP).
To order ARZ Solar for windows-with-raised-axis-of-rotation (FYP, FYU or FDY) or for panoramic roof window (FEP) contact with us delivering details from nameplate of the window.

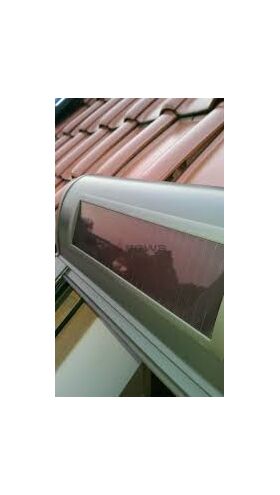

- ARZ Solar is powered by solar batteries;
- The remote control is not included.

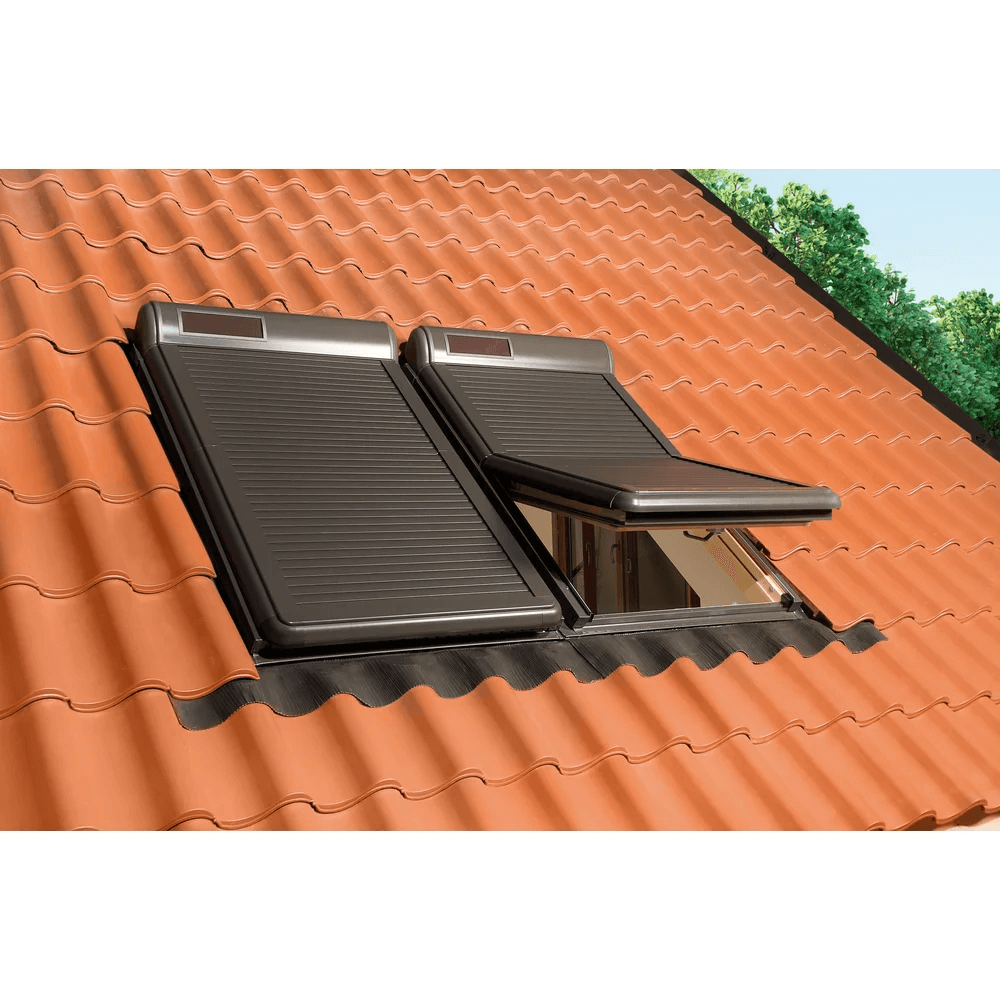

- When installing roller shutters on windows in any vertical combinations the minimum 20 cm distance between them must be observed and 10 cm between the windows installed side by side.
- effective reduction of heat entering the room;
- reduction of heat loss during winter;
- complete blackout;
- increased security and the feeling of privacy;
- protection from UV radiation;
- good sound reduction.
|The size of e.g. 78x140 cm applies to roof window's size! Window's size can be found on the nameplate located at the top of the window. There is no need to measeure the window. Just read the size from the nameplate and order accessories in the corresponding size.|
Control devices for FAKRO Z-Wave / SOLAR products
Kindly note: the product is sold separately!
The products listed below are not delivered with a roof window, shutters or blinds. They are sold separately so that each customer can choose the product that best suits their needs.
|Device type:||one-channel remote control||multi-channel remote control||wireless, multi-channel wall keyboard||multi-channel remote control|
|Compatibility with FAKRO Z-WAVE products:||✓||✓||✓||✓|
|Compatibility with FAKRO SOLAR products:||✓||✓||✓||✓|
|Amount of supported devices:||up to 12 devices in one group||do 12 urządzeń w każdej z 12 grup||up to 12 devices in each of the 7 groups||up to 24 devices in each of the 24 groups|
up to 24 devices in each of the 24 places
up to 24 sceens
|Available in white:||✓||✓||✓||✓|
|Available in black:||✕||✓||✕||✓|
|Dimensions:||48x125x17 mm||48x125x17 mm||80x80x20 mm||52x180x20 mm|
|LCD display:||-||-||-||240x320 px|
|Power supply:||2x batteries AAA||2x batteries AAA||4x batteries AAA||3x batteries AKU AAA|
|USB charging possible:||✕||✕||✕||✓|
|Working temperature:||from +5°C to +40°C||from +5°C to +40°C||from 0°C to +40°C||from +5°C to +40°C|
|Product||Awning blinds||Roller shutters|
|FTS, FTP, FTU||✓||✓||✓||-||-||✓||✓||✓||-|
FTT U8 Thermo
|✓ / -||✓ / -||✓ / -||-||-||✓ / -||✓ / -||✓ / -||-|
|BD, BVP, BXP||-||-||-||-||✓||-||-||-||-|
