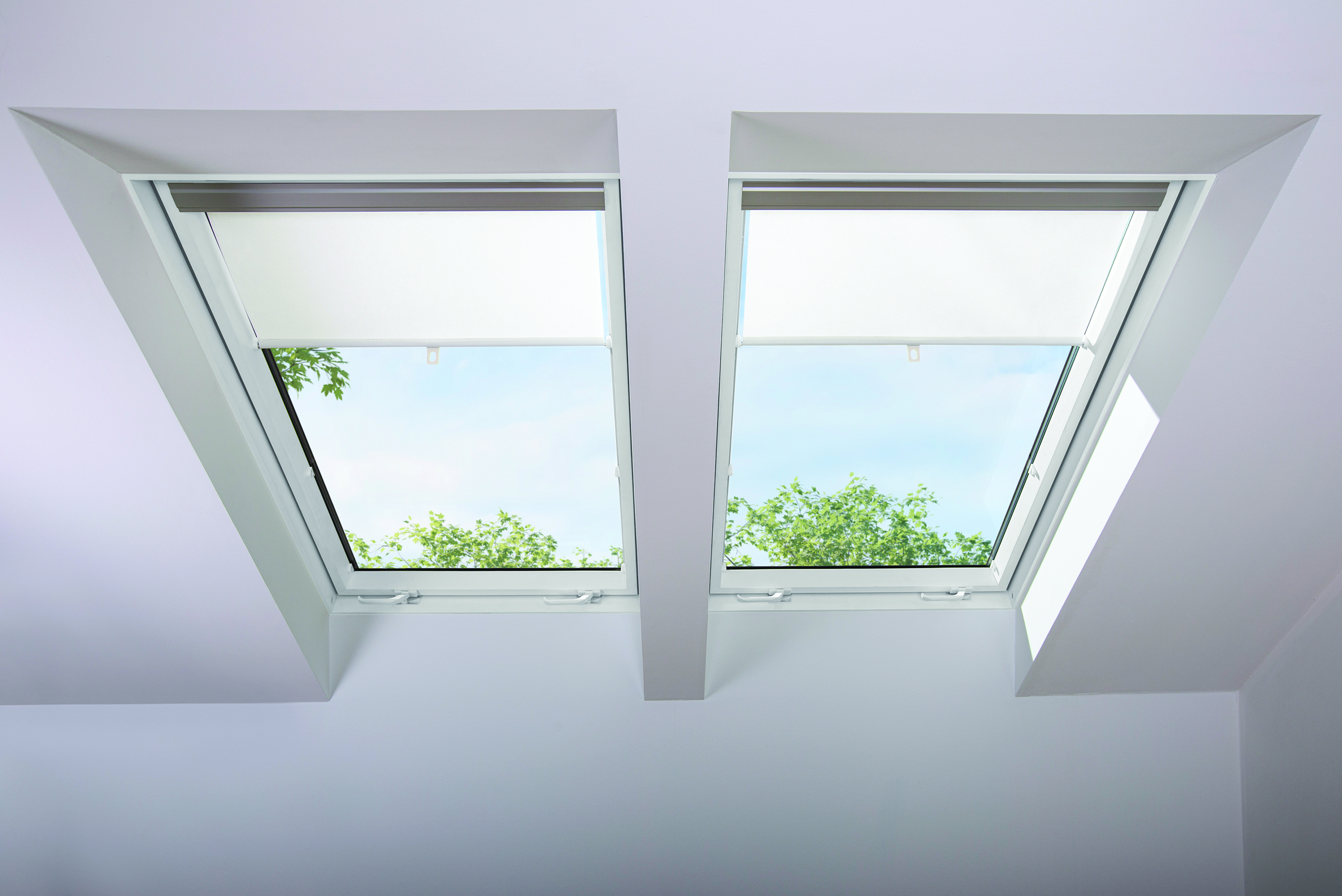

PVC roof windows will work in every room, especially in the bathroom

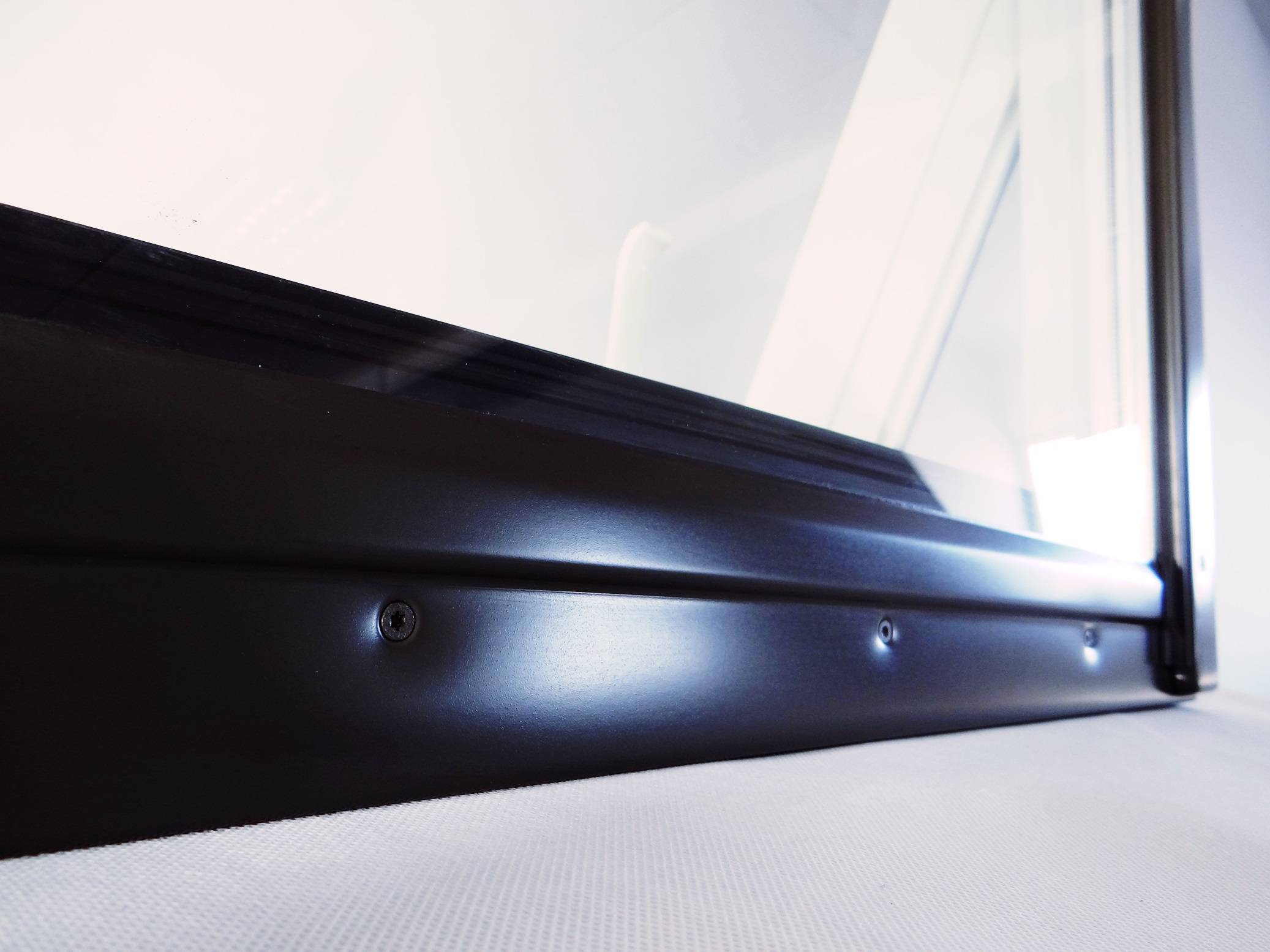

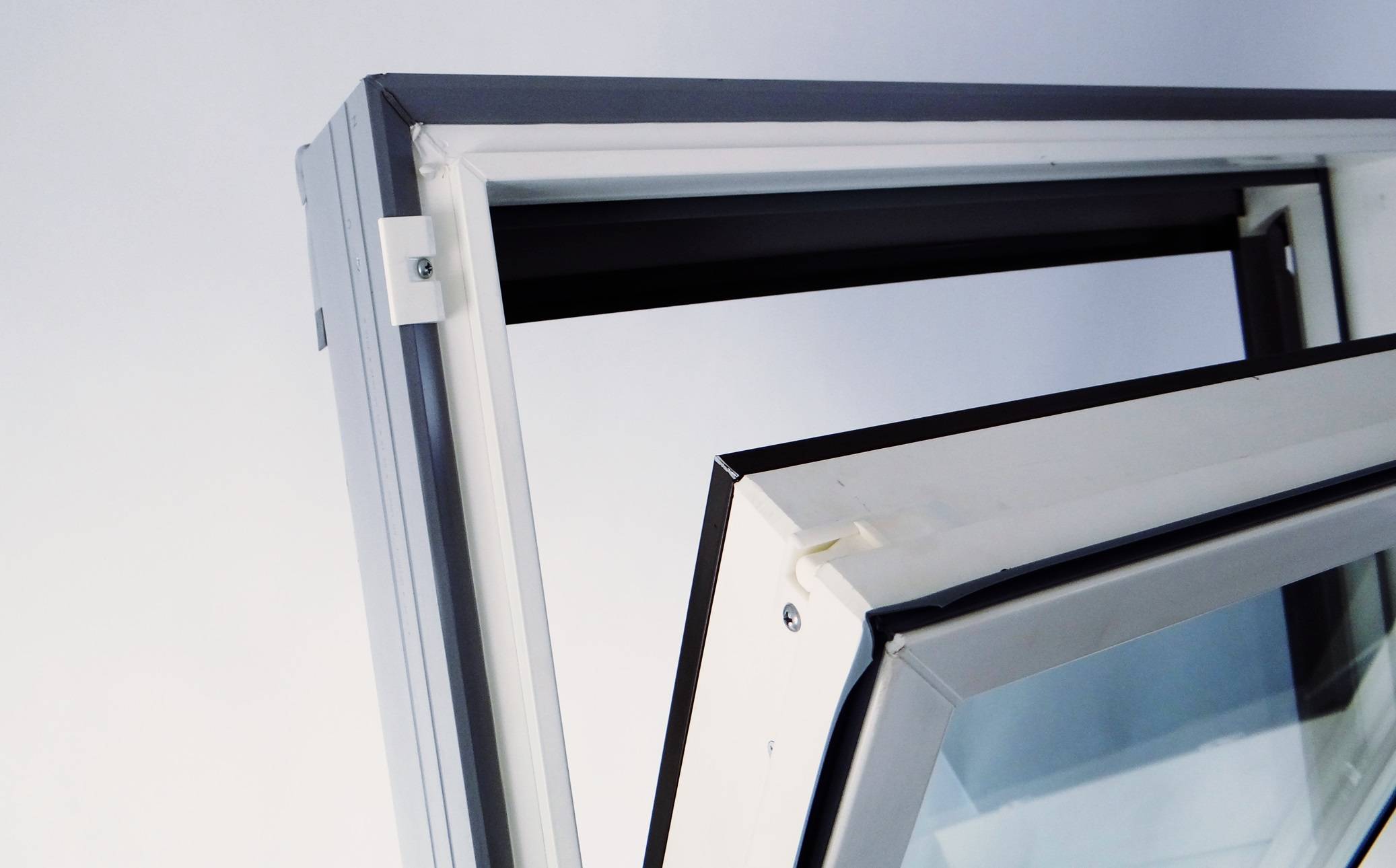

OptiLight TLP-V roof window is an aluminum-clad plastic structure manufactured with the use of prime quality PVC profiles re-enforced from the inside with steel profiles. Such constructed windows are durable and their maintenance is limited to an absolute minimum. The material used in the window production does not absorb water, hence it is particularly recommended for rooms with elevated humidity levels (kitchens, bathrooms or laundry rooms).

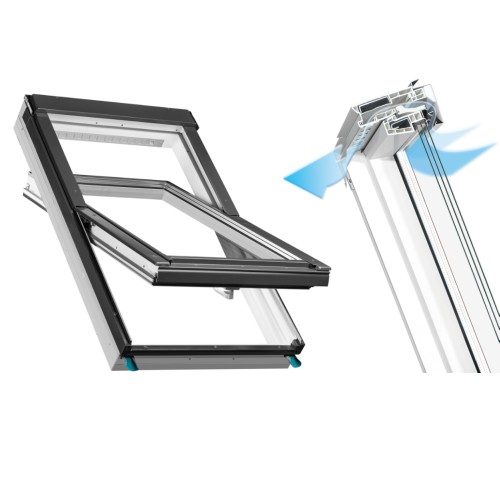

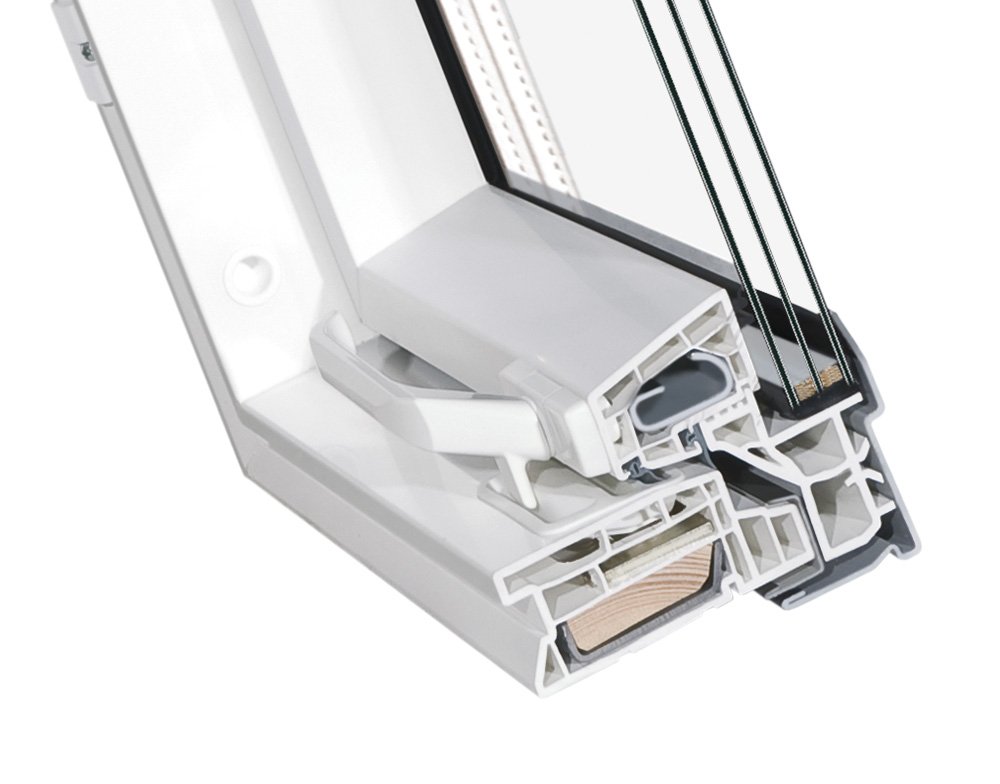

TLP-V roof window with highly energy efficient double chamber glazing unit
Thanks to the use of a 3-pane package with Ug=0.7W/m2K, a U-value of the total window Uw=1.1W/m2K is achieved. Due to this structure, the OptiLight TLP-V ENERGIE is energy efficient and fully in the current trend of energy saving.
OptiLight roof window is easy to operate

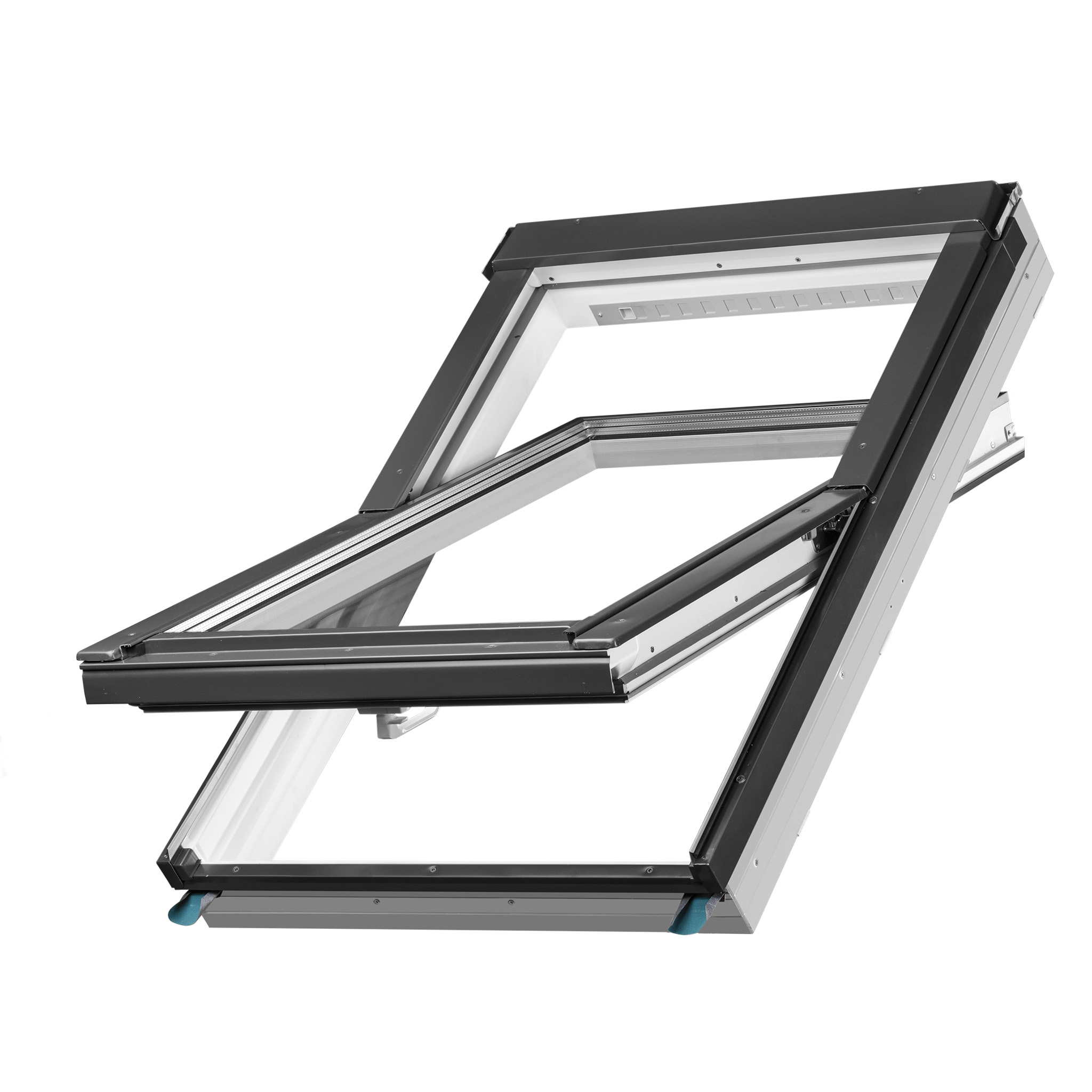

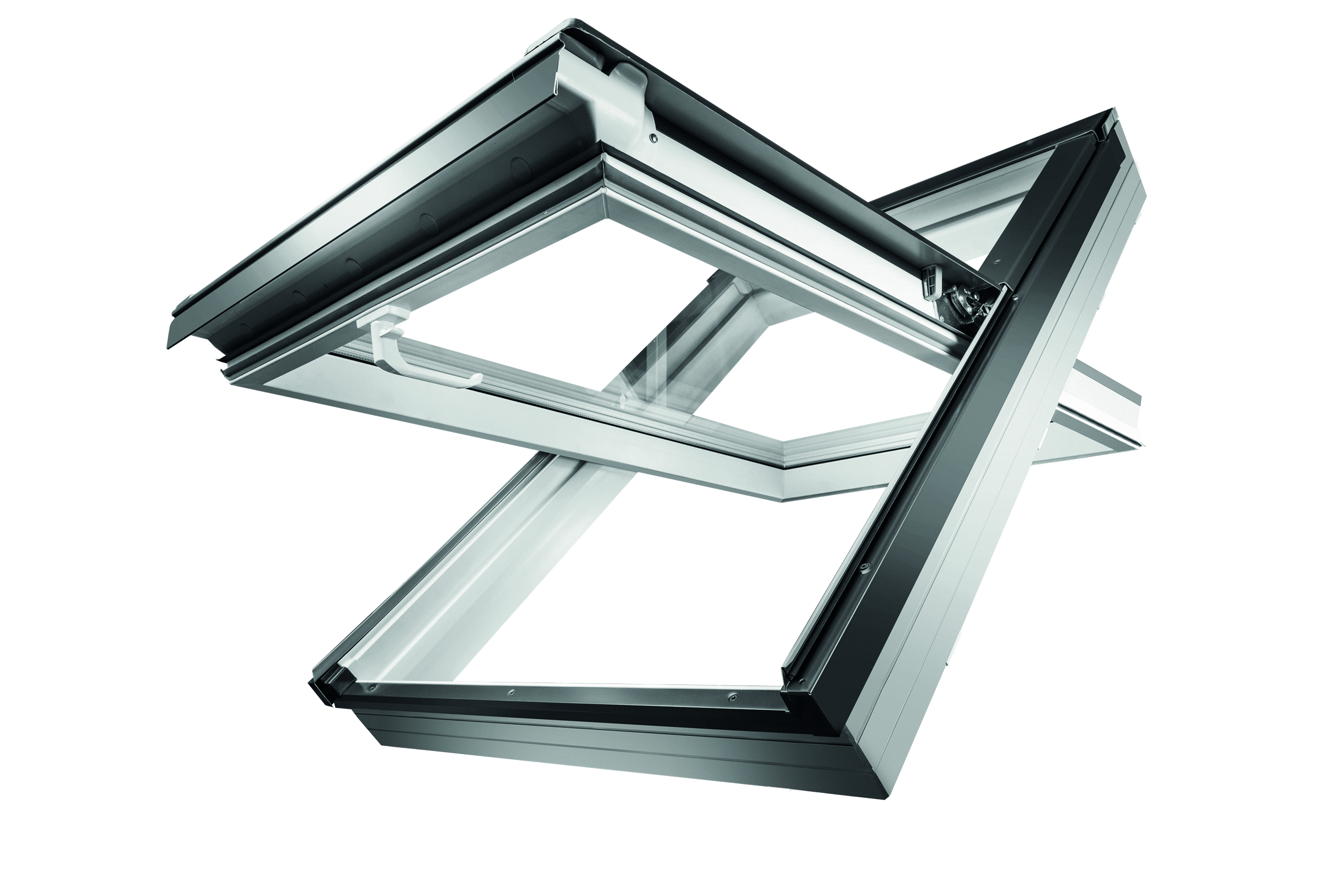

OptiLight TLP-V is a centre pivot roof window. The main advantage of this design is convenient and safe washing of the external glass surface. The sash can be rotated through 180 degrees and then blocked for washing by means of a bolt. From the width of 94 cm the window is equipped with 2 handles.

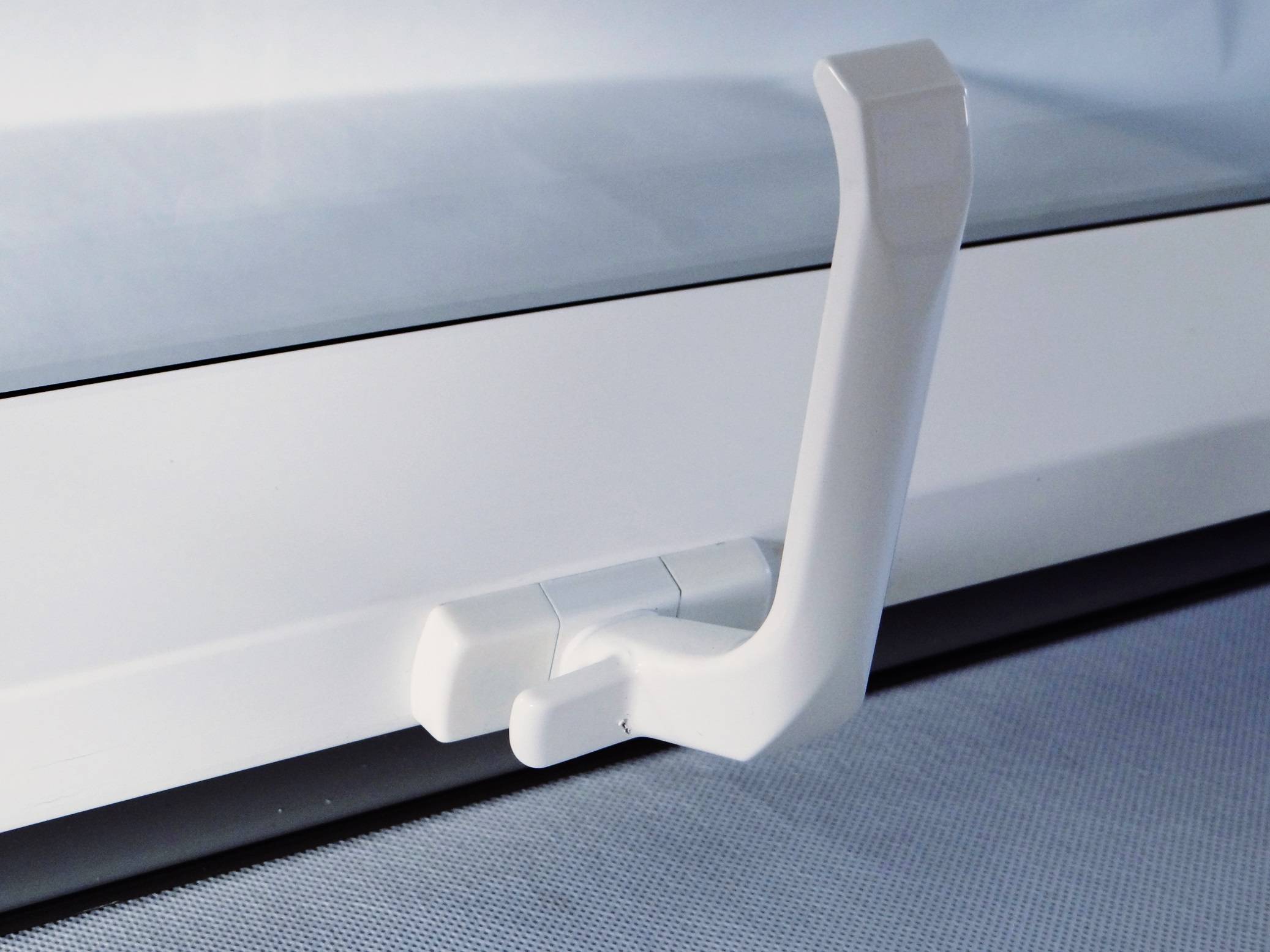

A handle situated in the lower section of the window ensures usage comfort. Even in case of windows installed higher, there is no need for helping oneself with, e.g. a chair in order to open them. The window closing system, apart from keeping the window closed tightly, offers also a micro-opening facility which allows ventilation of the room.
OptiLight TLP roof window variants
|THERMO vs ENERGIE|
|Product name:||OptiLight TLP U2
|OptiLight TLP-V U4
|Profile type:||Aluminium-plastic structure windows with multi-chamber PVC profiles and strengthened from the inside with galvanized steel|
|Window U-value:||Uw = 1.3 W/m2K||Uw = 1.1 W/m2K|
|Glazing unit:||single chamber (2-pane)||double chamber (3-pane)|
|Outer pane:||4 mm, tempered||4 mm, tempered|
|Middle pane:||-||4 mm|
|Inner pane:||4 mm||4 mm|
|Cavity:||16 mm argon-filled||2x 12 mm argon-filled|
|Glazing total thickness:||24 mm||36 mm|
|Glazing U-value:||Ug = 1.1 W/m2K||Ug = 0.7 W/m2K|
|Glazing solar heat gain:||g = 0,64||g = 0,53|
|Glazing light transmittance:||τ = 0,82||τ = 0,74|

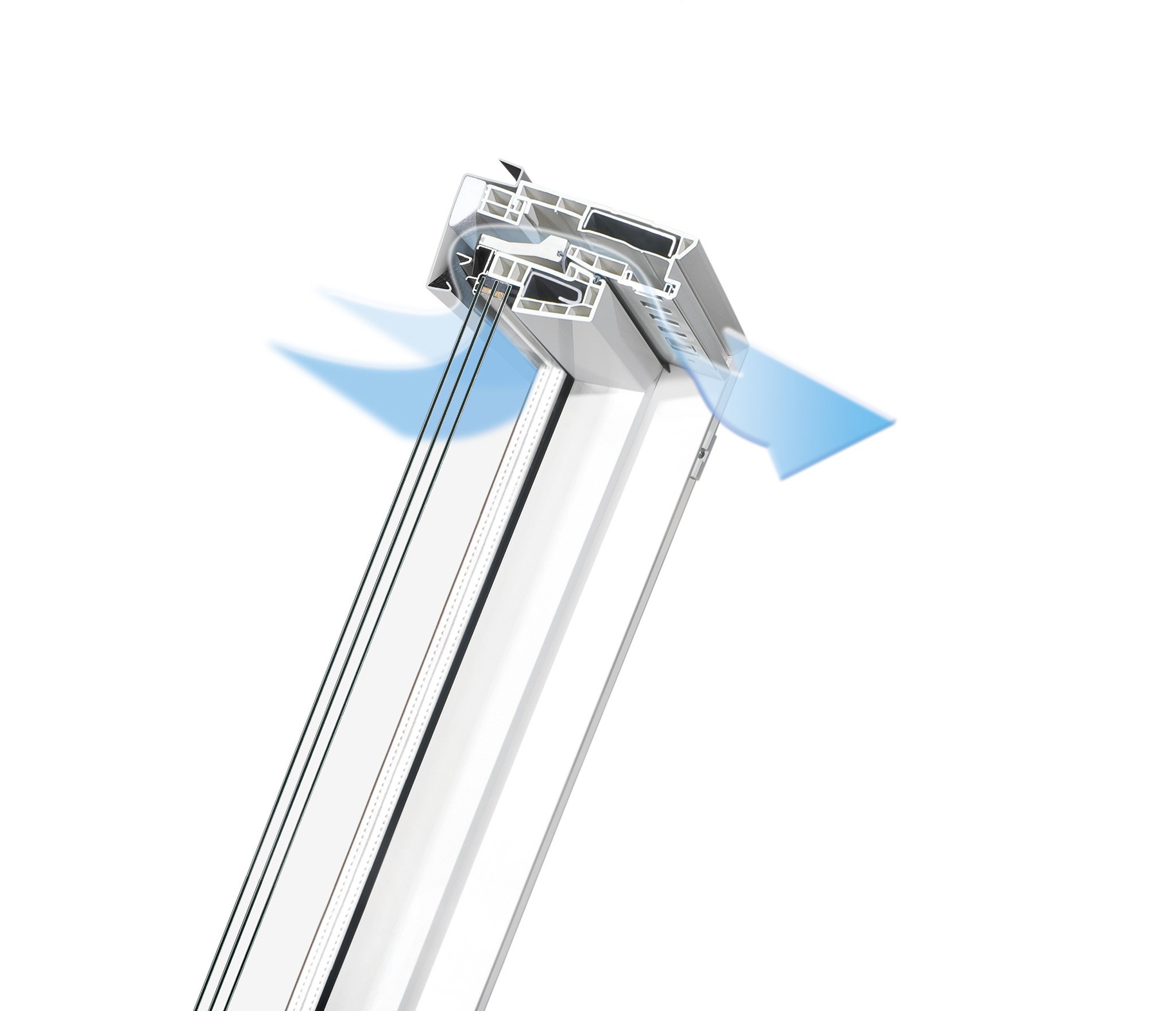

|Air inlet air flow:||-||up to 40m3/h
at the pressure difference of 10Pa
depending on the window width
|Outside color:||RAL 7022||RAL 7022|
|Installation range:||Suitable for installation into roof pitches between 15° and 90°|
|Guarantee:||10 years||10 years|

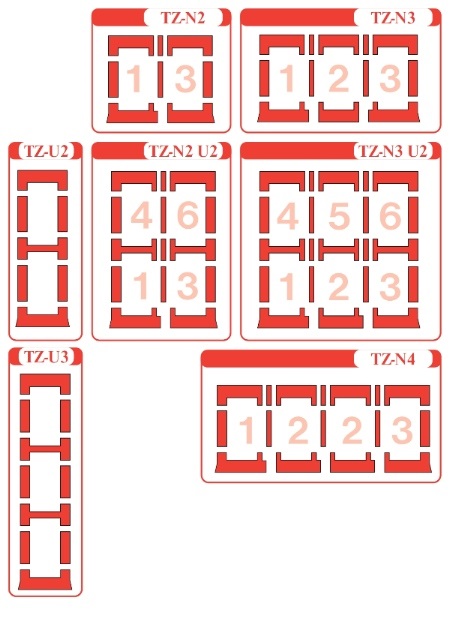

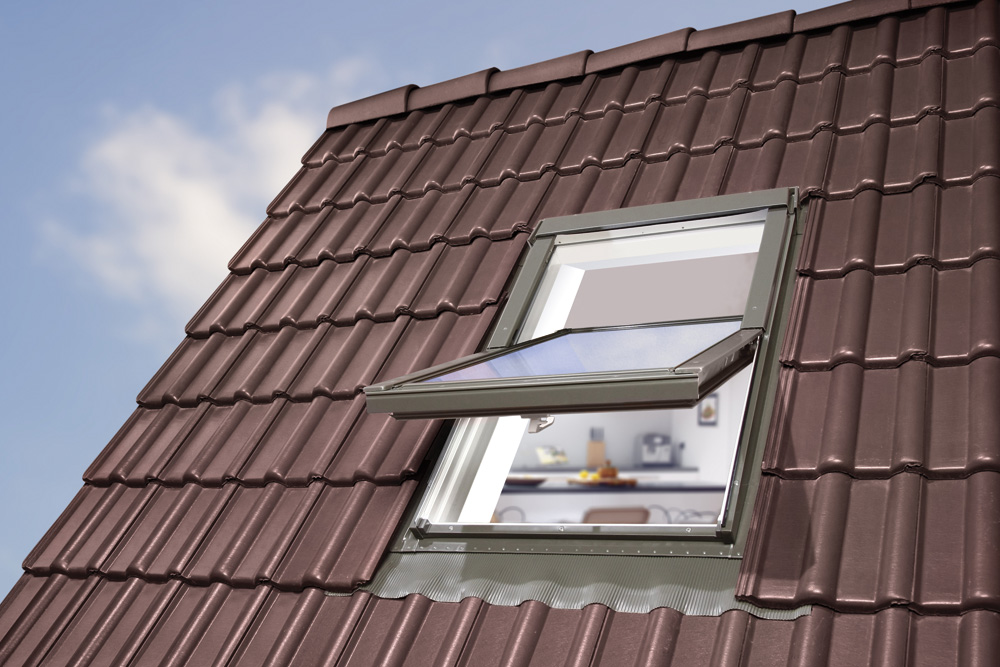

A flashing is an essential element allowing correct installation of a takfönster in the roof slope. The precisely designed systemic elements of the flashing enable tight and durable integration of the window with roofing. It is very important as the main task of the flashing is to drain water and snow away from the window and protect it against the wind. The flashings are manufacture from aluminium sheet, coated with hard-wearing polyester lacquer. The basic color is umbra Grey (RAL 7022), thanks to which windows go well with standard colors of roofing materials. Flashings are used for connecting the windows with roofing and it is the roofing which decides about their selection.
FAKRO accessories, both internal and external, are available: roller blinds, venetian blinds, pleated blinds, blackout blinds, insect screens, awning blinds and external roller blinds can all be used with OptiLight windows. For operation of windows and accessories installed high out of reach special rods are available. Additional accessories can be controlled manually or electrically, in a wide range of designs and colours to match any interior decor. The wide range of accessories increases the functionality of the window, and offers the means of light control as well as energy used.
OptiLight windows can be fitted with choosen additional accessories for FAKRO pivot windows which include internal as well as external accessory:
- ARS, ARP roller blinds
- AJP venetian blinds
- APS pleated blinds
- ARF blackout blinds moskitiery
- AMS mosquito screen
- AMZ awning blinds
- ARZ-E, ARZ Solar roller shutters
Compatibility of OptiLight roof windows with FAKRO accessories
|Category||Product||B and VB||VK||WGT and WGI||TLP|
|AJP-E, AJP Z-Wave||-||-||-||+|
|ARP-E, ARP Z-Wave||-||-||-||+|
|ARF-E, ARF Z-Wave||-||-||-||+|
|ARF/D, ARF/D Z-Wave||-||-||-||-|
|Exterior||AMZ, AMZ New Line||+||-||-||+|
|AMZ-E, AMZ Z-Wave||+||+||-||+|
|ARZ-E, ARZ Z-Wave||+||+||-||+|
- center pivot
