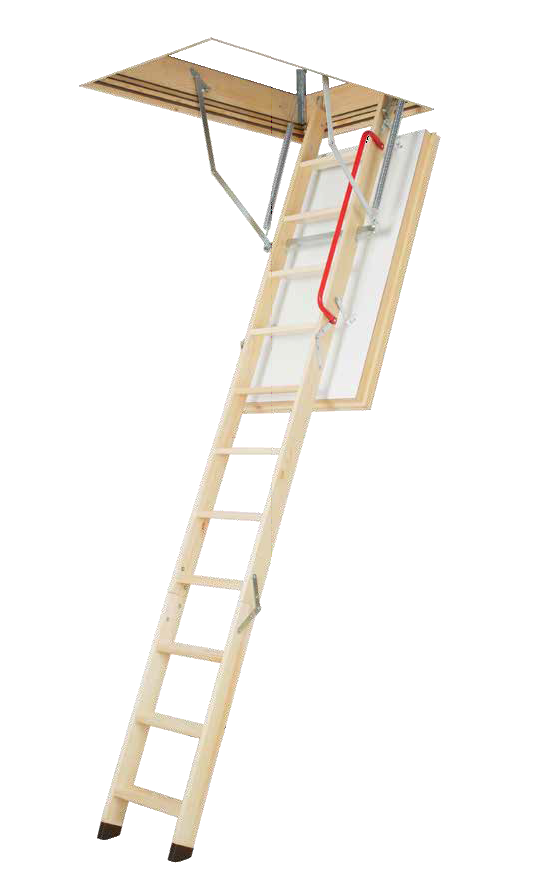

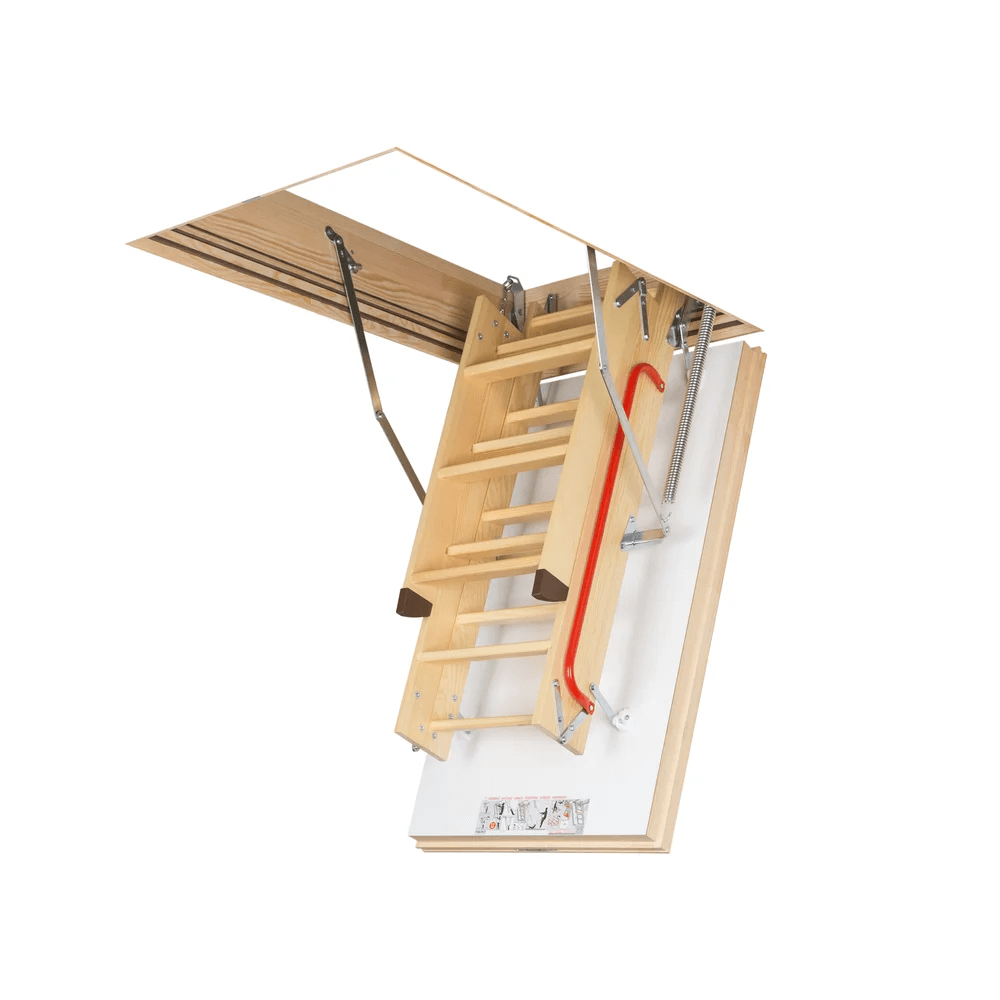

FAKRO Loft ladder LWT-PH for Passive House

510,21 inc. VAT, excl. shipping
(428,75 excl. VAT and shipping)
ODF-8665AE

Ships within 18 business days after receipt of your payment

+
Add to wish list

Features

  • stile ends
  • white hatch
  • three seals
  • handrail
  • non-slip treads set flush with ladder strings
  • fully assembled and ready for quick installation in the ceiling
  • possibility of installing additional accessories
  • 3 yeahr warranty

Technical specification:

  • Satisfy the requirements of EN 14975
  • Maximum loading: 160 kg
  • Loft ladder U-Value: U=0.51 W/m²K
  • Insulation thickness: 7.4 cm
  • Hatch thickness 8 cm

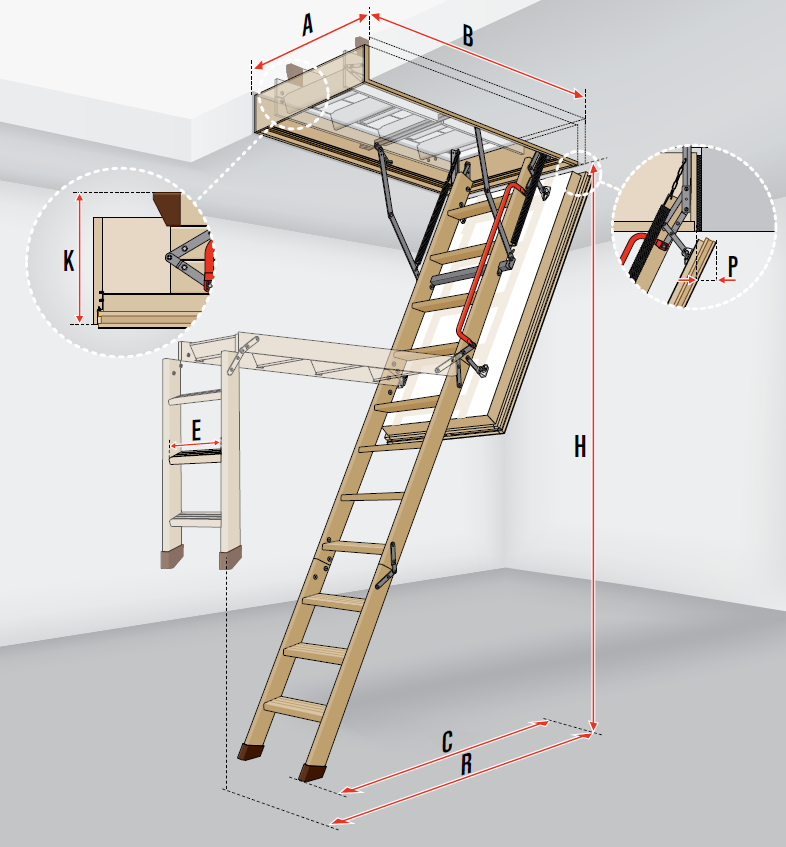

Technical data

Ceiling opening dimension / room height[cm] AxB hH 60x120 h280 70x120 h280 70x130 h280 70x140 h280 60x130 h305 70x130 h305 70x140 h305
Box external dimension [cm] WxL 58x118.4 68x118.4 68x128.4 68x138.4 58x128.4 68x128.4 68x138.4
Box interior dimension [cm] MxN 54x114 64x114 64x124 64x134 54x124 64x124 64x134
Box height [cm]   22
Folded ladder height [cm] K 33
Swing space [cm] R 160 175
Distance after ladder unfolding [cm] C 127 135
Tread length [cm] E 34
Tread width [cm] S 8
Tread thickness [cm] Z 2
Distance between each tread [cm] G 25

Installation how-to-video

U-value:
0.51 W/(m²K)
