FAKRO PTP-V U4 - super energy saving, moisture resistant roof window with air inlet.

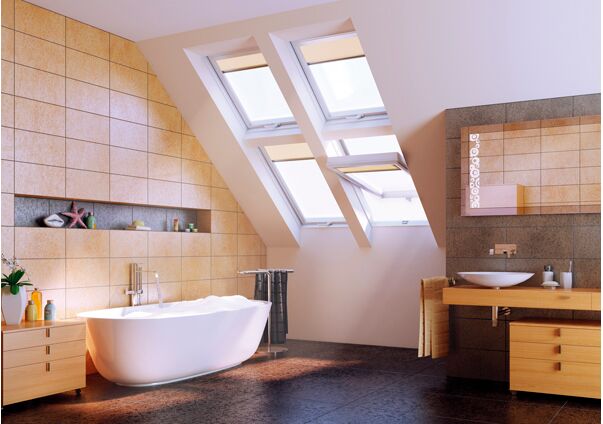

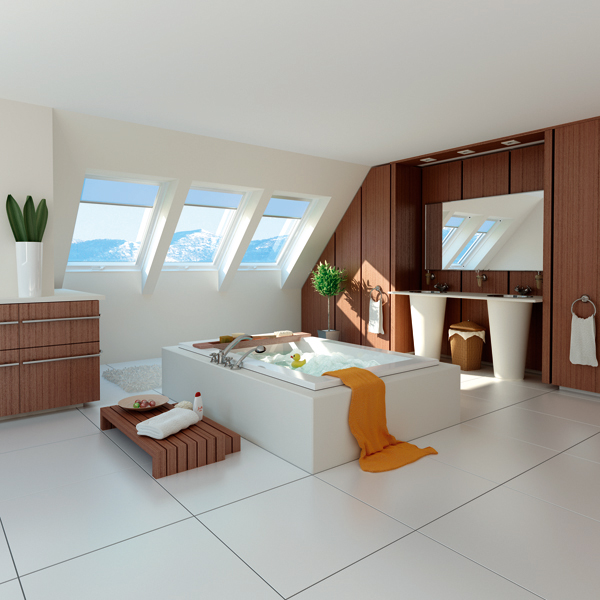

FAKRO PTP-V U4 is PVC, centre pivot roof window. It's profile, reinforced with galvanized steel, makes wndow stabile, solid and usage-deformation proof. It is is durable, corrosion free, resistant to changeable weather conditions and its maintenance is reduced to an absolute minimum. The plastic used in the window production does not absorb any moisture and is resistant to acid or alcohol action.The windows are ideal for rooms with elevated humidity levels (kitchens, bathrooms, laundries, drying rooms and baths).
Benefits of FAKRO PTP-V U4 roof window
- Manufactured from white (RAL 9010) multi-chamber PVC-U profiles strengthened from the inside with galvanized steel profiles - solid, durable, corrosion free window, easy cleaning;
- Color of exterior metal sheets - RAL 7022 - brown-grey.
- Possibility to rotate the sash to 180°
- Heat transfer coefficient of the window: Uw=1.3 W/m²K

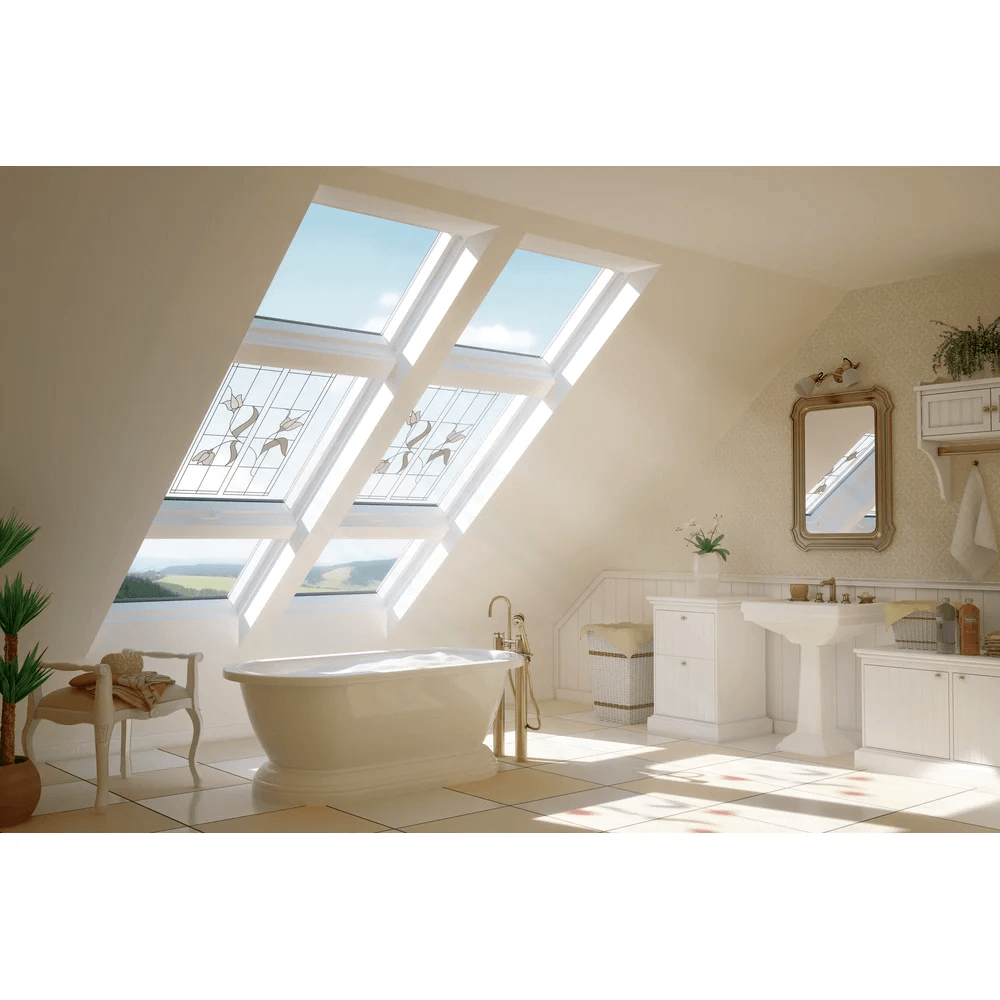

- Increased resistance to moisture - perfect for bathrooms kitchens, laundy rooms, but it will look great also in rest of the rooms;
- Anti-burglary topSafe system:
- specially shaped and mounted hinges prevents from forcing of the hinges and sash
- metal reinforcement makes break-in using a crowbar much more difficult
- specially reinforced structure and locking parts.
- U4 glazing - super energy saving, 3 panes, filled with argon, sun rays reduction - 83%;
- Glazing seal provides additional tightness in extreme weather conditions and reduces the micro pulses of the cladding profiles during heavy rain

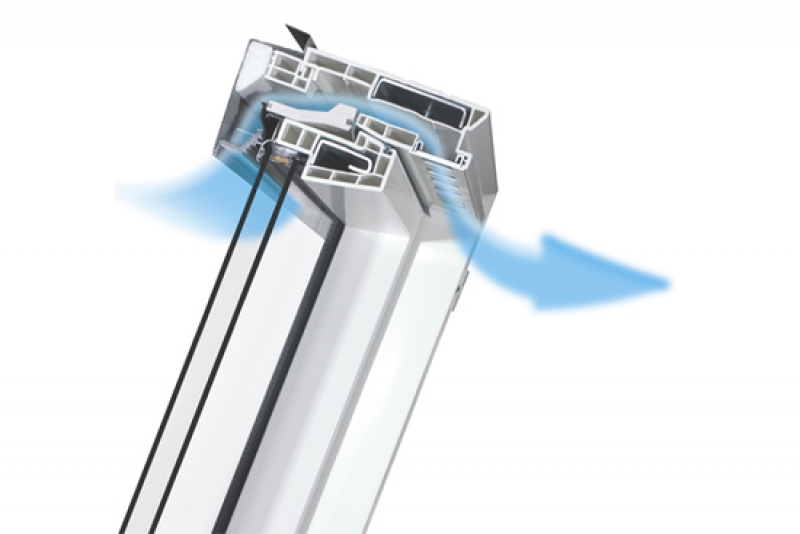

- Air inlet - V35 type. t's presence allows to air flow without opening the window. It is very comfortable in rainy days, when roof window shouldn't be opened, or when it is really cold outside. It provides air exchange, wich is very important, if you want to avoid codensation. Efficiency: up to 41m3/h

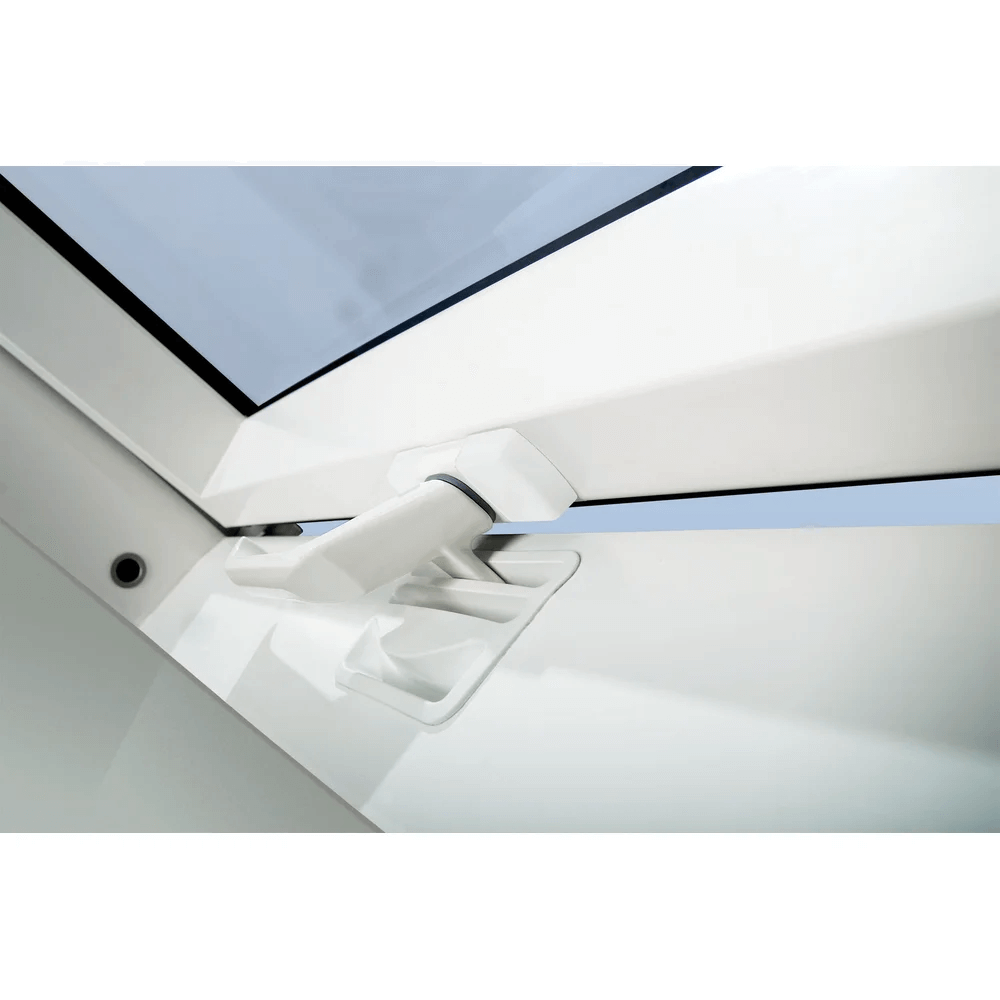

- Elegant white handle positioned on the lower part of the sash for easy operation;
- Installation with flashing in roofs with pitches between 15° and 90°;
- Factory pre-fixed, lower angle brackets for installing the window in the roof;
- Wide range of internal and external accessories; the same as those used with wooden windows;
- Warranty
- hail - lifetime warranty
- whole window - 10 years
- glazing - 20 years
- hinges, fitting - 20 years
Do I need flashing? Which flashing to choose?
Flashings are essential for the correct installation of roof windows. It is a set of aluminium sheets, precisely designed, which ensures a durable and neat fit with the roof covering.The main task of the flashing is to drain water and snow away from the window and protect it against the wind. The basic color is Grey – brown (RAL 7022) - the same as window outside profiles, thanks to which FAKRO windows go well with standard colors of roofing materials. Flashings are used for connecting the windows with roofing and it is the roofing which decides about their selection. Below we present available FAKRO flashings:
There are following available flashings:
- Standard flashings, both can be used on roofs with pitches between 15° and 90°:
- EZV-A - to most common wavy, tiled roof coverings, with height up to 45 mm height. Works with roof tiles, wavy metal sheets, but also with flat tiles,
- ESV - for flat but thin roof coverings, up to 10mm = 2x 5mm. Work with roofing felt, shingle, slate or metal sheet.
- Thermo flashings - with additional insulation:
|
||||
EHV-AT Thermo | EZV-FT Thermo | ELV-T Thermo | EBV-PT Thermo | ESV-T Thermo |
For high – profiled coverings up to 90mm:
|
For flat roof tile with thichness up to 45mm | For slate roof coverings 32mm (8+8mm or 16+16mm):
|
Steel Panel Sheet - with prefabricated (system) joints | Flat, thin roof coverings up to 10mm (2 layers x 5mm):
|
Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° |
FAKRO accessories to roof windows
Each FAKRO roof window can be upgraded by external and internal accessories. FAKRO offers a lot of products from manual decorative blinds, through light control and heat protection to solar or electro Z-wave accessories. FAKRO offers wide range of designs and colors to cater to all tastes.
To choose the perfect FAKRO product you must precise what destination it should have. It is important to adjust the the roof window to your activity and preferrences. E.eg. in bedroom it is good to install blackout blind, thank's to which sun light, or moon light won't dusturb while sleeping. In an office, living room, kitchen, or bathroom, decorative blind will be enough - just to cover the glass and give the privacy. Anti heat blinds are perfect for all types of rooms. they will prevent from heat and will help to reduce temperature on the attic. Solar-powered and electro Z-wave products are dedicated for those who seek for comfortable, hi tech solutions, want to connect windows and blinds to smart home system or want to use ecological poducts. Also FAKRO solar powered and Z-Wave accessories are perfect for high-installed windows, where manual operation is difficult or not possible. Elegant remote controls will allow to set opening and closing properties.
Internal accessories
FTS, FTP, FTU |
FTT U5* FPT U5* | FTT U6, FTT U8 |
PTP, PTP-V | FPP-V, FPU-V | PPP-V | FEP | FYP-V | PYP-V | FDY-V | FGH-V | FTP/D, FTU/D | FXP, FXU | FWR, FWL | FWP | |||
up. sash |
bot. sash |
up. sash |
bot. sash |
||||||||||||||
FAKRO AJP | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO AJP z-WAVE | + | + | - | + | + | + | + | + | + | + | - | + | - | + | - | +3 | + |
FAKRO ARS | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + |
FAKRO ARP | + | + | + | + | + | + | + | + | + | + | + | - | + | + | + | +3 | + |
FAKRO ARP Z-Wave, ARP WiFi |
+ | + | - | + | + | + | + | + | + | + | - | - | - | + | - | +3 | + |
FAKRO ARF | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO ARF Z-Wave, ARF WiFi | + | + | - | + | + | + | + | + | + | + | - | + | - | + | - | +3 | + |
FAKRO APS | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO APF | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO AMS | + | + | + | + | + | + | + | + | + | +1 | +1 | - | - | +1 | +1 | + | + |
External accessories
FTS, FTP, FTU |
FTT U5* FPT U5* | FTT U6, FTT U8 |
PTP, PTP-V | FPP-V, FPU-V | PPP-V | FEP | FYP-V | PYP-V | FDY-V | FGH-V | FTP/D, FTU/D | FXP, FXU | FWR, FWL | FWP | |||
up. sash |
bot. sash |
up. sash |
bot. sash |
||||||||||||||
FAKRO AMZ, AMZ New Line |
+ | + | + | + | + | + | - | + | + | + | +4 | + | +4 | + | +4 | - | - |
FAKRO AMZ Z-WAVE, AMZ Solar, AMZ WiFi |
+ | + | + | + | + | + | - | + | + | +4 | +4 | +4 | +4 | + | +4 | +3,4 | +3,4 |
FAKRO AME | - | - | - | - | - | - | + | - | - | - | - | - | - | - | - | - | - |
FAKRO ARZ-H | + | - | - | - | + | - | - | +4 | - | +4 | - | +4 | - | +2 | - | - | - |
FAKRO ARZ Z-WAVE, ARZ Solar, ARZ WiFi | + | + | + | + | + | + | - | +4 | +4 | +4 | +4 | +4 | - | +2 | +4 | - | - |
FAKRO ARK-Z Wave, ARK Solar | - | - | - | - | - | - | + | - | - | - | - | - | - | - | - | - | - |
- * - interior accessories for special request, exterior accessoies -standard
- 1 -for window opening up to 240 cm length
- 2 - with 20 cm distance between the windows
- 3 - installation by FAKRO service required
- 4 - for special request, limited usage
How to choose proper size of FAKRO accessories?
First af all you should check what size does your windows have. You can do it by checking the nameplate from the window. It is placed on the lower part of the sash, and you need to open the window to see it. After establishing the size ofthe window, just choose blind, awning blind, or shutter in the corresponding size.
Warning! | |
The size of e.g. 78x140 cm applies to roof window's size! The blind itself is smaller. Window's size can be found on the nameplate located at the top of the window. There is no need to measeure the window. Just read the size from the nameplate and order accessories in the corresponding size. |
All the FAKRO accessories you can find here
What are differences between PTP U4, PTP U4 V and PTP-V U5 roof windows:
PTP U4 | PTP-V U4 | PTP-V U5 | |
U-value of the window: | 1,1 W/m²K | 1,1 W/m²K | 1,0 W/m²K |
U-value of the glass: | 0,7 W/m²K | 0,7 W/m²K | 0,5 W/m²K |
Rw-value: | 34 dB | 33 dB | 34 dB |
Glass type: | 4HT-12-4-12-4T | 4HT-12-4-12-4T | 4HT-10-4H-10-4HT |
TGI warm interframe: | - | - | + |
Gas between the panes: | Argon | Argon | Krypton |
Hardened exterior glass: | + | + | + |
Laminated interior glass: | - | - | - |
Air inlet: | - | V35 | V35 |
Efficiency of air inlet: | - | 41 m3/h | 41 m3/h |
Seals: | 4 | 4 | 4 |
Micro ventilation: | + | + | + |
Handle: | Elegant vit | Elegant vit | Elegant vit |
Internal color: | Vit, RAL 9010 | Vit, RAL 9010 | Vit, RAL 9010 |
External color: | Grå, RAL 7022 | Grå, RAL 7022 | Grå, RAL 7022 |
Pitch roof: | 15-90° | 15-90° | 15-90° |
Warranty: | 10 years | 10 years | 10 years |
