Roof underlay Ventia Titanium

Alter Preis: 1,64 ( 1,38 excl. VAT and shipping)
1,48 / m² inc. VAT, excl. shipping
(1,24 excl. VAT and shipping) You save: 0,14 (10%)
MDM-12500

Ships within 5-7 business days after receipt of your payment

+

Minimum quantity for "Roof underlay Ventia Titanium" is 1.

Add to wish list

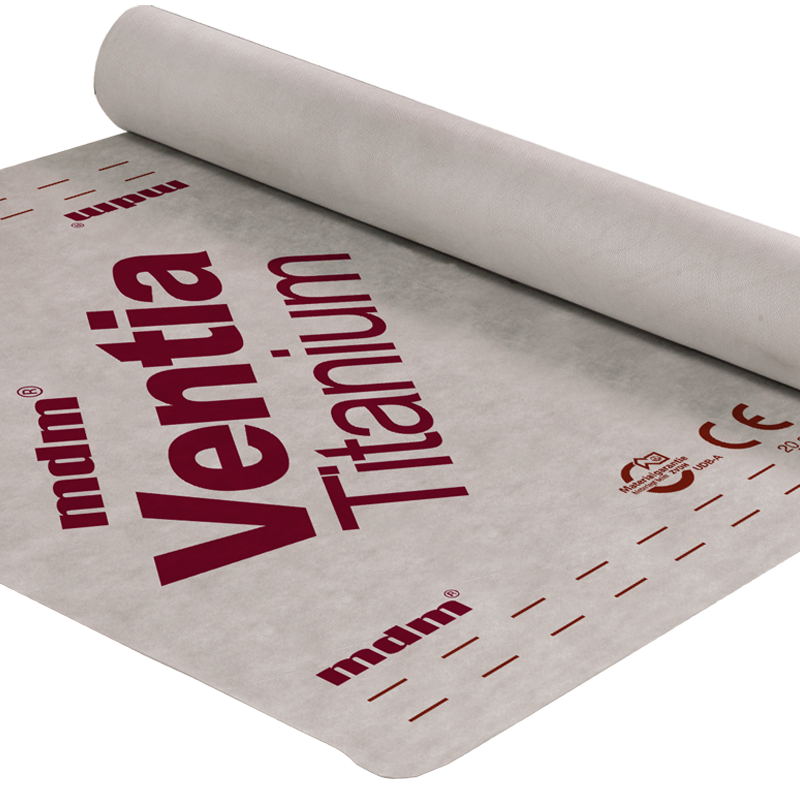

A high class roof membrane from Ventia line, weight of about 180 g/ m2 and thickness of 850 μm. Threelayered, water resistant, diffusively open, with high water vapour permeability (Sd=0,02 m). It can be used on roofs with full boarding. High class roof membrane ZVDH certified.

Material - polypropylene nonwovens laminated with microporous polypropylene film.

Use with full boardnig - yes

UV resistance - 3 months (concerns average yearly radiation in the Central European climat).

lenght: 50 m

width: 1,5 m



Palett dimensions [mm]: 1540x1170x1300

m²/palett: 2025 m² / 27 rol.

ProductThickness [mm]Weight [g/m2]Temperature resistanceUV ResistanceReaction to fireWater vapour diffusion SdTensile strength
Ventia Q0,90230from -40°C to +80°C6 monthsClass E-d20,04 mMD - 380 N/50 mm (± 50)
CD - 260 N/50 mm (± 35)
Ventia Platinium Plus1,00225from -40°C to +80°C3 monthsClass E-d20,04 mMD - 500 N/50 mm (± 75)
CD - 340 N/50 mm (± 40)
Ventia Titanium Plus0,85185from -40°C to +80°C3 monthsClass E-d20,02 mMD - 430 N/50 mm (± 60)
CD - 260 N/50 mm (± 35)
Ventia Titanium0,85180from -40°C to +80°C3 monthsClass E-d20,02 mMD - 420 N/50 mm (± 70)
CD - 250 N/50 mm (± 35)
Ventia Cobalt Plus0,80170from -40°C to +80°C3 monthsClass E-d20,04 mMD - 370 N/50 mm (± 50)
CD - 230 N/50 mm (± 25)
Ventia Gold0,70150from -40°C to +80°C3 monthsClass E0,02 mMD - 350 N/50 mm (± 50)
CD - 210 N/50 mm (-10+40)
Ventia Bronze0,60130from -40°C to +80°C3 monthsClass E-d20,02 mMD - 280 N/50 mm (± 40)
CD - 190 N/50 mm (± 35)
Ventia Iron0,55120from -40°C to +80°C3 monthsClass E-d20,02 mMD - 245 N/50 mm (± 45)
CD - 140 N/50 mm (± 25)
Ventia Metal8 + 0,70400from -30°C to +80°C3 monthsClass F0,02 mMD - 400 N/50 mm (± 60)
CD - 210 N/50 mm (± 30)
Ventia VB0,4585--Class F4,50 mMD - 150 N/50 mm (± 30)
CD - 110 N/50 mm (± 50)
Ventia Reflex0,4077--Class F6 mMD - 130 N/50 mm (± 25)
CD - 90 N/50 mm (± 20)

Dimensions

Width:
1500mm
Length:
50000mm

Roof underlays

Basis weight:
180 g/m²
Thickness:
850 μm
Sd:
0.02 m
