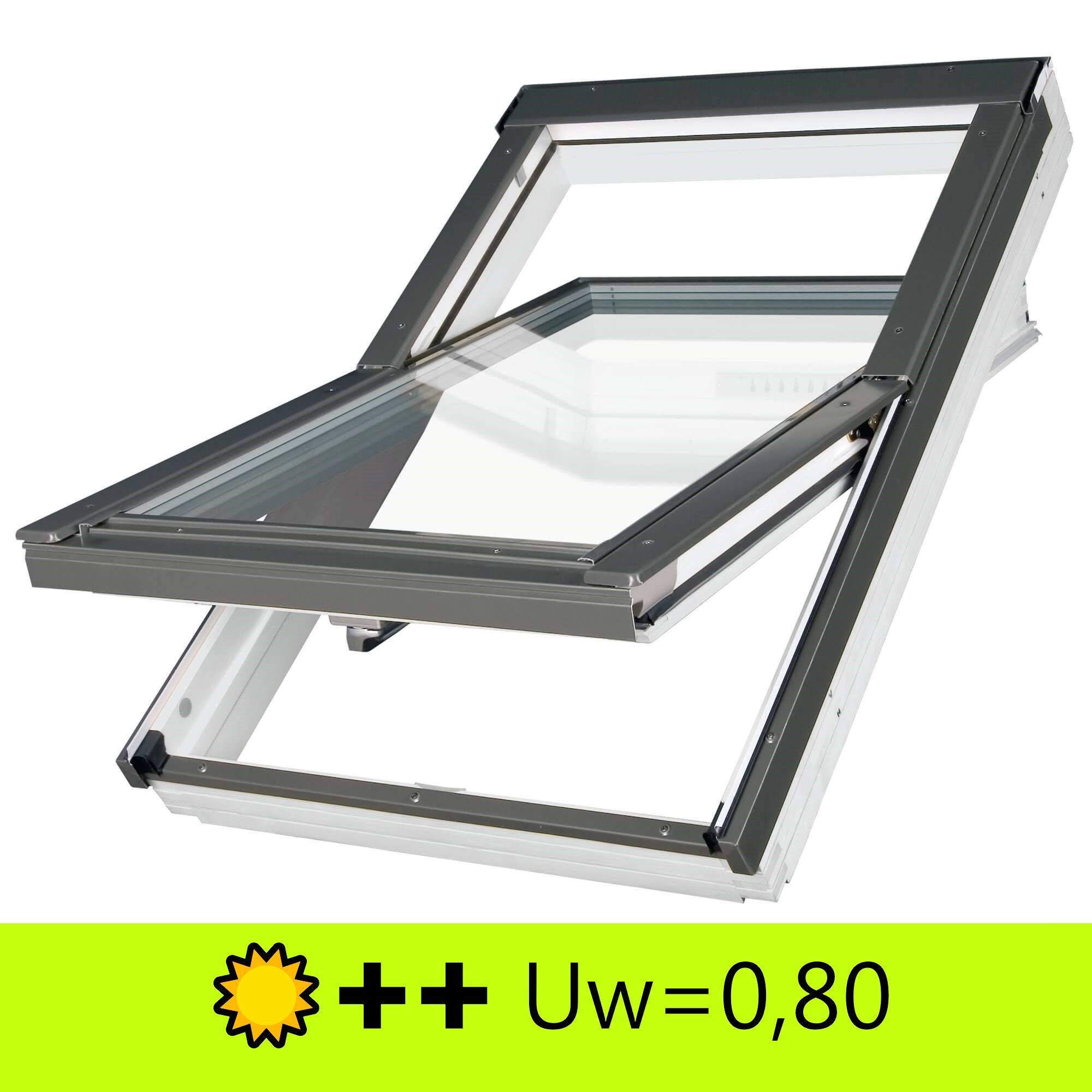

FAKRO FTT/U U6 is supreme, highly energy efficient white-finished roof window for rooms with high humidity.
FAKRO FTT/U U6 is innovative, super energy saving window with triple glazing. Frame of the window is wider than standard profiles, outer pane is anti-bulglary P2A class. It makes the window extremely solid, safe and tight. High pivot construction does not limit the view when window is opened and ensure comfort of usage. Wood-finish design fits to classic, elegant interiors. Glazing with excellent thermal insulation value makes FTT window perfect for air-conditioned rooms with mechanical ventilation systems. White finish ensures protection from moisture, what makes those windows suitable to bathrooms, kitchens or laundry rooms as well.
Benefits of FAKRO FTT/U U6 roof window
- Made of pine wood (knot-free), vacuum impregnated and coated with three coats of white polyurethane varnish creates a durable, perfectly smooth, white surface (NCS S 0502-Y) Window is solid, durable, elegant and moistureproof;
- Wide and specially designed window frame - solid, durable, elegant window;
- Color of exterior metal sheets - RAL 7022 - brown-grey;
- Possibility to rotate the sash to 180°;
- Heat transfer coefficient of the window: Uw=0,8 W/m²K;
- Anti-burglary topSafe system:
- specially shaped and mounted hinges prevents from forcing of the hinges and sash
- metal reinforcement makes break-in using a crowbar much more difficul
- specially reinforced structure and locking parts.
- U6 glazing, tripple glazing with Ug=0,5W/m2K, super energy efficient and bulglary-proof;
- 5 glazing seal provides additional tightness in extreme weather conditions and reduces the micro pulses of the cladding profiles during heavy rain;
- ThermoPro technology:
- improved thermal insulation - lower heating bills, less warm losses
- increased durability of wood - water drainage channels, protection from moisture
- tightness of the window - 3rd and 4th tightness class
- easier installation - new brackets make mounting quicker
- Elegant silver handle positioned on the lower part of the sash for easy operation;
- Installation with flashing in roofs with pitches between 15° and 70°;
- Factory pre-fixed, lower angle brackets for installing the window in the roof;
- Wide range of internal and external accessories; the same as those used with wooden windows;
- Warranty
- hail - lifetime warranty
- whole window - 10 years
- glazing - 20 years
- hinges, fitting - 20 years
Do I need flashing? Which flashing to choose?
Flashings are essential for the correct installation of roof windows. It is a set of aluminium sheets, precisely designed, which ensures a durable and neat fit with the roof covering.The main task of the flashing is to drain water and snow away from the window and protect it against the wind. The basic color is Grey – brown (RAL 7022) - the same as window outside profiles, thanks to which FAKRO windows go well with standard colors of roofing materials. Flashings are used for connecting the windows with roofing and it is the roofing which decides about their selection. Below we present available FAKRO flashings:
To FTT U6 window there are recommended following flashings with additional insulation:
|
||||
EHV-AT Thermo | EZV-FT Thermo | ELV-T Thermo | EBV-PT Thermo | ESV-T Thermo |
For high – profiled coverings up to 90mm:
|
For flat roof tile with thichness up to 45mm | For slate roof coverings 32mm (8+8mm or 16+16mm):
|
Steel Panel Sheet - with prefabricated (system) joints | Flat, thin roof coverings up to 10mm (2 layers x 5mm):
|
Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° | Can be used on roofs with pitches between 15° and 90° |
FAKRO accessories to roof windows
Each FAKRO roof window can be upgraded by external and internal accessories. FAKRO offers a lot of products from manual decorative blinds, through light control and heat protection to solar or electro Z-wave accessories. FAKRO offers wide range of designs and colors to cater to all tastes.
To choose the perfect FAKRO product you must precise what destination it should have. It is important to adjust the the roof window to your activity and preferrences. E.eg. in bedroom it is good to install blackout blind, thank's to which sun light, or moon light won't dusturb while sleeping. In an office, living room, kitchen, or bathroom, decorative blind will be enough - just to cover the glass and give the privacy. Anti heat blinds are perfect for all types of rooms. they will prevent from heat and will help to reduce temperature on the attic. Solar-powered and electro Z-wave products are dedicated for those who seek for comfortable, hi tech solutions, want to connect windows and blinds to smart home system or want to use ecological poducts. Also FAKRO solar powered and Z-Wave accessories are perfect for high-installed windows, where manual operation is difficult or not possible. Elegant remote controls will allow to set opening and closing properties.
Internal accessories
FTS, FTP, FTU |
FTT U5* FPT U5* | FTT U6, FTT U8 |
PTP, PTP-V | FPP-V, FPU-V | PPP-V | FEP | FYP-V | PYP-V | FDY-V | FGH-V | FTP/D, FTU/D | FXP, FXU | FWR, FWL | FWP | |||
up. sash |
bot. sash |
up. sash |
bot. sash |
||||||||||||||
FAKRO AJP | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO AJP z-WAVE | + | + | - | + | + | + | + | + | + | + | - | + | - | + | - | +3 | + |
FAKRO ARS | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + |
FAKRO ARP | + | + | + | + | + | + | + | + | + | + | + | - | + | + | + | +3 | + |
FAKRO ARP Z-Wave, ARP WiFi |
+ | + | - | + | + | + | + | + | + | + | - | - | - | + | - | +3 | + |
FAKRO ARF | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO ARF Z-Wave, ARF WiFi | + | + | - | + | + | + | + | + | + | + | - | + | - | + | - | +3 | + |
FAKRO APS | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO APF | + | + | + | + | + | + | + | + | + | + | + | + | + | + | + | +3 | + |
FAKRO AMS | + | + | + | + | + | + | + | + | + | +1 | +1 | - | - | +1 | +1 | + | + |
External accessories
FTS, FTP, FTU |
FTT U5* FPT U5* | FTT U6, FTT U8 |
PTP, PTP-V | FPP-V, FPU-V | PPP-V | FEP | FYP-V | PYP-V | FDY-V | FGH-V | FTP/D, FTU/D | FXP, FXU | FWR, FWL | FWP | |||
up. sash |
bot. sash |
up. sash |
bot. sash |
||||||||||||||
FAKRO AMZ, AMZ New Line |
+ | + | + | + | + | + | - | + | + | + | +4 | + | +4 | + | +4 | - | - |
FAKRO AMZ Z-WAVE, AMZ Solar, AMZ WiFi |
+ | + | + | + | + | + | - | + | + | +4 | +4 | +4 | +4 | + | +4 | +3,4 | +3,4 |
FAKRO AME | - | - | - | - | - | - | + | - | - | - | - | - | - | - | - | - | - |
FAKRO ARZ-H | + | - | - | - | + | - | - | +4 | - | +4 | - | +4 | - | +2 | - | - | - |
FAKRO ARZ Z-WAVE, ARZ Solar, ARZ WiFi | + | + | + | + | + | + | - | +4 | +4 | +4 | +4 | +4 | - | +2 | +4 | - | - |
FAKRO ARK-Z Wave, ARK Solar | - | - | - | - | - | - | + | - | - | - | - | - | - | - | - | - | - |
- * - interior accessories for special request, exterior accessoies -standard
- 1 -for window opening up to 240 cm length
- 2 - with 20 cm distance between the windows
- 3 - installation by FAKRO service required
- 4 - for special request, limited usage
How to choose proper size of FAKRO accessories?
First af all you should check what size does your windows have. You can do it by checking the nameplate from the window. It is placed on the lower part of the sash, and you need to open the window to see it. After establishing the size ofthe window, just choose blind, awning blind, or shutter in the corresponding size.
Warning! | |
The size of e.g. 78x140 cm applies to roof window's size! The blind itself is smaller. Window's size can be found on the nameplate located at the top of the window. There is no need to measeure the window. Just read the size from the nameplate and order accessories in the corresponding size. |
All the FAKRO accessories you can find here
Technical specification of the FAKRO FTT roof windows
FTT roof windows | FTT/U roof windows | ||||
Inside color / outside color: | |||||
Natural (wood) / Grey (RAL 7022) |
White (NCS S 0502-Y) / Grey (RAL 7022) |
||||
Construction: | |||||
Pine wood coated with 2 layers of transparent lacquer | Pine wood coated with 3 layers of polyurethane varnish | ||||
FAKRO roof window name: | |||||
FTT U8 | FTT U6 | FTT R3 | FTT/U U8 | FTT/U U6 | FTT/U R3 |
Window U-value [W/m2K]: | |||||
Uw = 0,58 | Uw = 0,80 | Uw = 0,81 | Uw = 0,58 | Uw = 0,80 | Uw = 0,81 |
Acoustic insulation [dB]: | |||||
Rw = 36 (-2;-5) | Rw = 38 (-1;-4) | Rw = 42 (-2;-4) | Rw = 36 (-2;-5) | Rw = 38 (-1;-4) | Rw = 42 (-2;-4) |
Glazing type and glazing U-value: | |||||
Quadruple glazing U8 4H-12-4HT-12-4HT-12-4HT Ug=0,3W/m2K |
Triple glazing U6 6H-18-4HT-18-33.2T Ug=0,5W/m2K |
Triple glazing R3 8H-16-4HT-18-33.2SIT Ug=0,5W/m2K |
Quadruple glazing U8 4H-12-4HT-12-4HT-12-4HT Ug=0,3W/m2K |
Triple glazing U6 6H-18-4HT-18-33.2T Ug=0,5W/m2K |
Triple glazing R3 8H-16-4HT-18-33.2SIT Ug=0,5W/m2K |
Inner glass: | |||||
4 mm | 2x 3mm, laminated (class P2A) | 2x 3mm, laminated (class P2A) | 4 mm | 2x 3mm, laminated (class P2A) | 2x 3mm, laminated (class P2A) |
External glass: | |||||
4 mm, toughened | 4 mm, toughened | 4 mm, toughened | 4 mm, toughened | 4 mm, toughened | 4 mm, toughened |
Inert gas filled panes: | |||||
Krypton | Argon | Argon | Krypton | Argon | Argon |
Spacers: | |||||
Warm TGI | Warm TGI | Warm TGI | Warm TGI | Warm TGI | Warm TGI |
Air inlet type (air flow [m3/h]): | |||||
- | - | - | - | - | - |
Installation range (roof slope) : | |||||
15° - 70° | 15° - 70° | 15° - 70° | 15° - 70° | 15° - 70° | 15° - 70° |
