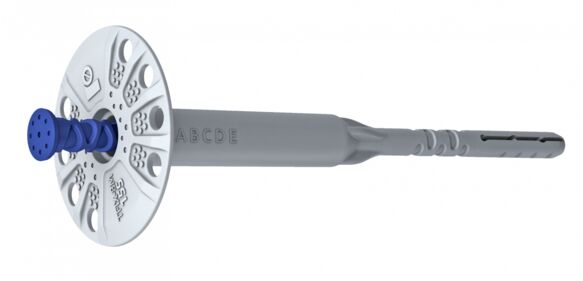

Insulation fixing TFIX-8M

Alter Preis: 0,27 ( 0,24 excl. VAT and shipping)
0,19 inc. VAT, excl. shipping
(0,17 excl. VAT and shipping) You save: 0,07 (30%)
tfix-8m

Ships within 5-7 business days after receipt of your payment

+

Minimum quantity for "Insulation fixing TFIX-8M" is 1.

Add to wish list

Areas of uses:

  • Hammer insulation fixing with an insulated metal pin designed for embedding of Jointless Facade Thermal Insulation Systems.
  • Lowest embedment depth with maximum high performance parameters;
  • Shortest drilling depth – saves installation time;
  • Highest technical parameters for detachment to ensure the safety of the product;
  • Optimal reduction of thermal bridge through the use of stroke-resistant screw overmoulding
  • The possibility of using a fixing with an extra KWL insulation holding flange (recommended in the use of mineral-lamella wool);
  • Economical consumption through optimal product parameters.

Material:

  • Plug Sleeve: impact resistant copolymer of polypropylene PP
  • Nail Pin: electro zinc plated pin
  • Head Coating: polyamide PA 6.0 ( Nylon) reinforced with fiber glass.

Features

  • Simple installation in all standard substrates (A,B,C).
  • Excellent plate stiffness (value 1.0 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The long plastic overmoulding on the TFIX-8M nail minimises thermal bridging (value 0.002W/K), contributing to energy-saving benefits.
  • Unique nail design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The shortest embedment depth at the maximum strength parameters.
  • Pre-assembled expansion nail saves time and labour.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140mm flange sizes (recommended for soft insulation materials such as mineral wool).

Installation recommendations:

  • drill diameter: 8 mm,
  • minimum embedment depth: ETA 25 mm

Dedicated substrates:

Performance data for single anchor in tension without influence of edge distance and spacing

Substrate Concrete Solid brick Mz Sand-lime solid brick KS Sand-lime perforated brick KSL Perforated clay brick HLz Lightweight concrete solid V Lightweight concrete solid block VBI Lightweight concrete hollow block HBI
Embedment depth hef [mm] 25 25 25 25 25 25 25 25
MEAN ULTIMATE LOAD NRu,m
TFIX-8M [kN] 1.54 1.72 1.47 1.00 0.68 0.54 0.51 0.53
CHARACTERISTIC LOAD NRk
TFIX-8M [kN] 1.20 1.20 1.20 0.90 0.60 0.50 0.30 0.50
DESIGN LOAD NRd
TFIX-8M [kN] 0.60 0.60 0.60 0.45 0.30 0.25 0.15 0.25
RECOMMENDED LOAD Nrec
TFIX-8M [kN] 0.43 0.43 0.43 0.32 0.21 0.18 0.11 0.18



Fixing type TFIX-8M
Plate resistance [kN] 1.75
Plate stiffness [kN/mm] 1.00
Point thermal transmittance χ [W/K] 0.00
